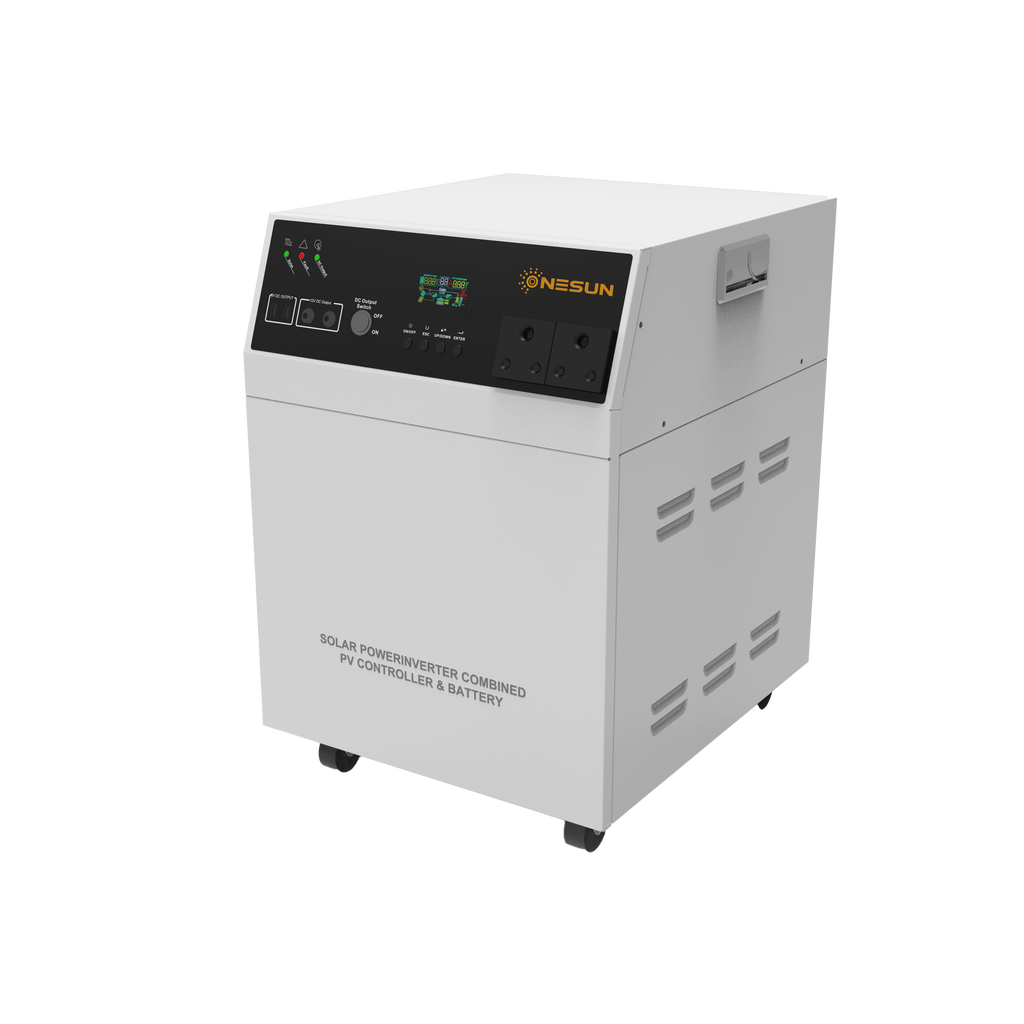

7.168KWH Portable Solar Generator Energy Storage/Power Station Kit for Home and Office

Save GH₵7,201
filler

Price:
Sale priceGH₵16,799 Regular priceGH₵24,000
Product Highlights
  • Solar Inverter: 2kva/1.6kw
  • Lithium Battery: 7.168KWH Capacity
  • Can be charged with Solar Panels
  • AC Outlet, USB-A Port, DC Socket

NB: PLEASE READ MANUAL BEFORE USE



    Specs

    MSF-2KW Specs


    2. SPECIFICATION

    Category Parameter Value
    Model MSF-2KW24V280AH/M, MSF-2KW24V200AH/M
    Inverter Rated Power 2000W
    Output Voltage 220VAC (Standard)/110VAC (Customized)
    Output Frequency 50Hz/60Hz
    Output Waveform Pure Sine Wave
    AC Charger Rated Voltage 220VAC (Standard)/110VAC (Customized)
    Charging Current 20A (15-30A Adjustable)
    Solar Charger Efficiency >97%
    Charging Method MPPT
    Max. PV Voltage 145V
    Rated PV Charging Voltage 27.4V
    Rated AC Charging Current 60A
    Max. Power 1600Wp
    Overcharge Protection Voltage 28.4VDC
    Float Charging Voltage 27.4V
    DC Output High Voltage Protection Voltage 32VDC
    High Voltage Recovery Voltage 30.4VDC
    Low Voltage Recovery Voltage 26VDC
    Low Voltage Protection Voltage 22VDC
    5VDC USB Output Port 2 Units (max 2A)
    12VDC Output Port 2 DC Ports (max 5A)
    Battery Battery Type Gel/LiFePO4
    Battery Voltage 25.6V
    Battery Specification 200AH (LiFePO4)/280AH (LiFePO4)
    General Data Warranty LiFePO4 Battery: 2 Years; Gel: 1 Year
    Operating Temperature 0°C~40°C
    Storage Temperature -25°C~55°C (LiFePO4 Battery: -10°C~50°C)
    Operating Humidity 0%~90%RH (Non-condensing)
    Dimensions (WDH) 380*434*539mm, 480*535*640mm (Packaged)
    Standard EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1, EN/IEC 6213
