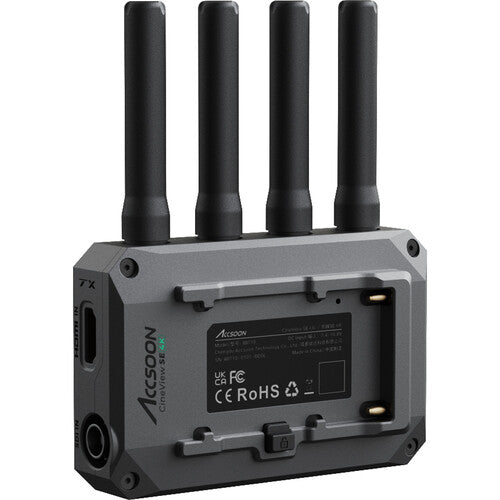

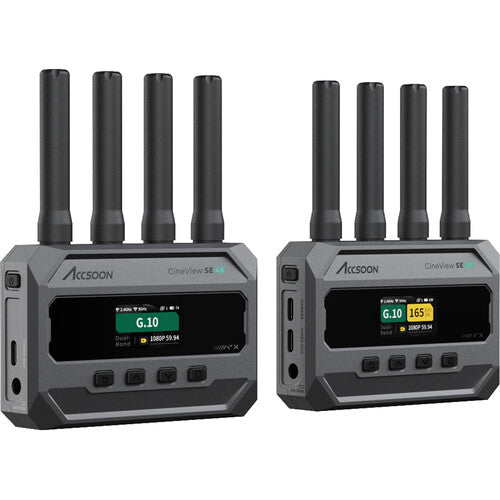

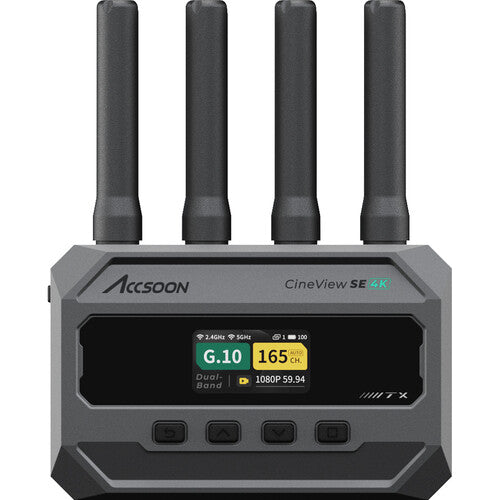

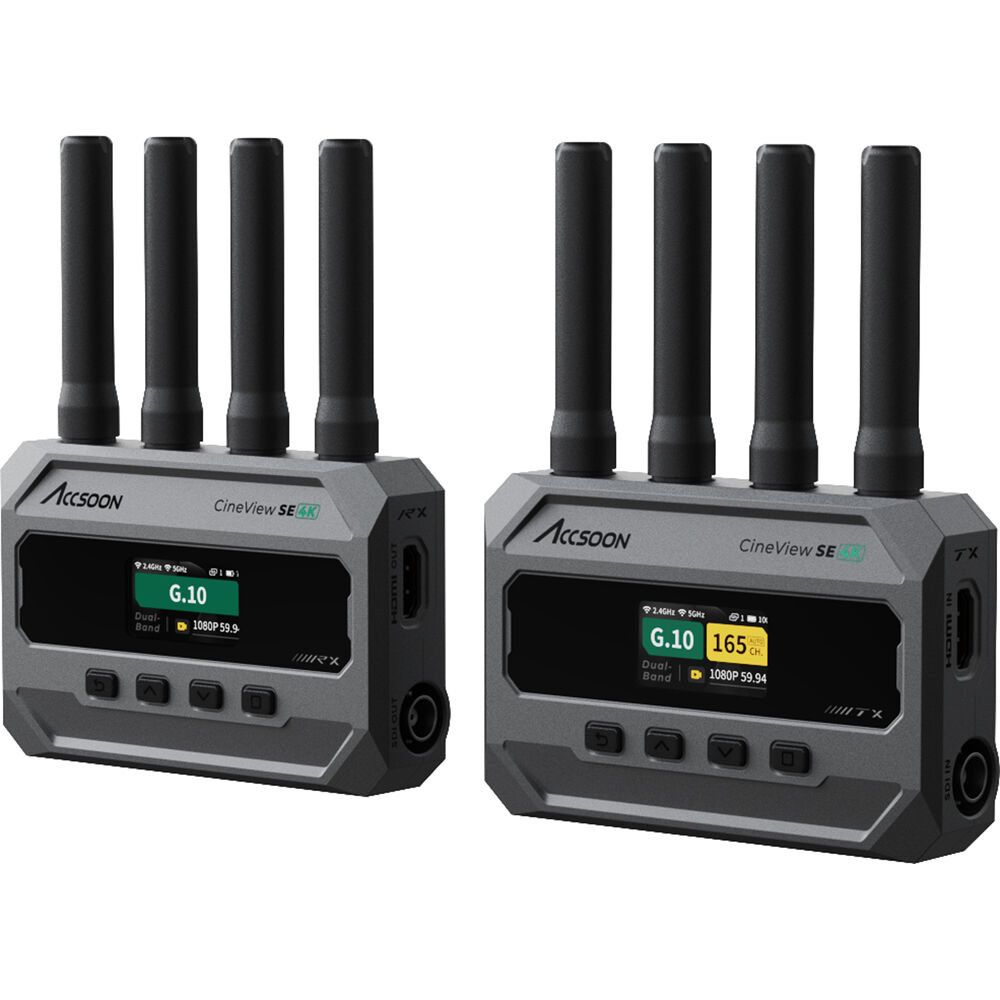

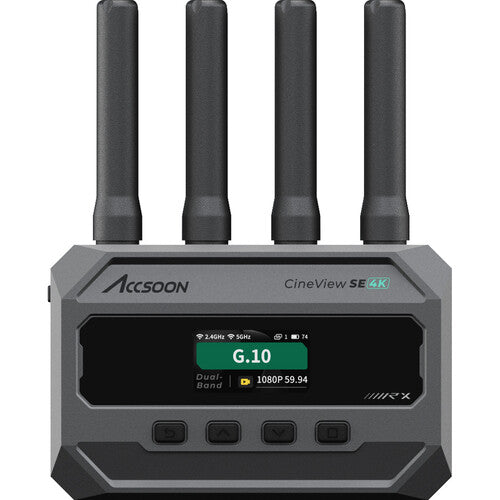

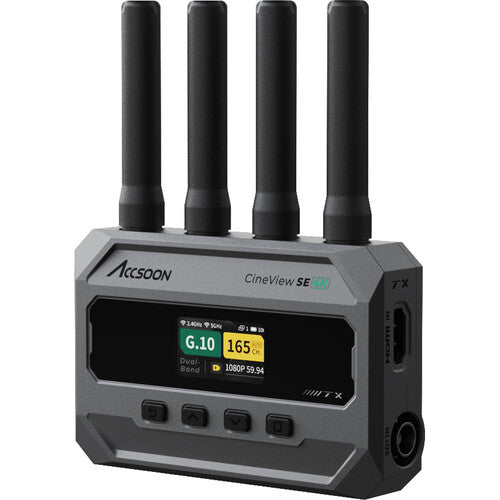

Accsoon CineView SE 4K SDI/HDMI (1300feet) Wireless Video Transmission System

filler

Price:
Sale priceGH₵5,899
Stock:
In stock
Product Highlights
  • NB: Battery and Power Adapter not included
  • Wireless HDMI/SDI/USB Video TX/RX Set
  • UHD 4K30 Transmission up to 1312'
  • Simultaneous HDMI, SDI, and USB Output
  • USB-C Camera Control Interface on TX
  • Dual-Band 2.4/5 GHz Transmission
  • USB-C Video Output for Mobile Devices

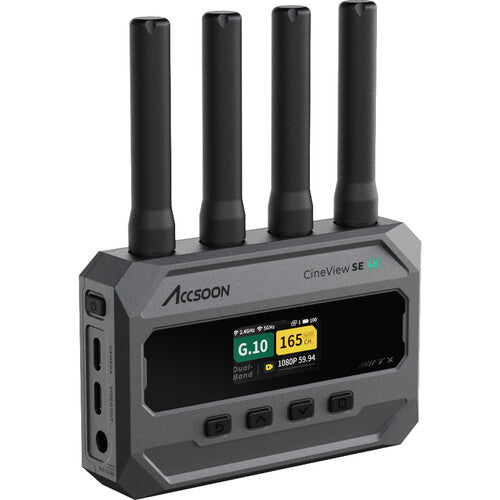

  • 1.05" Full-Color LCD Screen
  • Use One TX with up to Five RX
  • L-Series Battery and DC Input Support
  • Includes Two Shoe Mount Adapters



    Specs

    Accsoon CineView SE 4K Specs

    Key Specs
    Video I/O

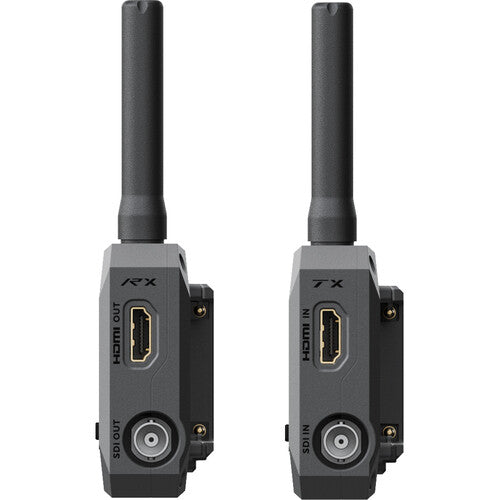

    Transmitter: 1x HDMI (Unspecified Signal) Input
    Transmitter: 1x BNC (3G-SDI) Input
    Transmitter: 1x USB-C (Unspecified Signal) Output
    Receiver: 1x HDMI (Unspecified Signal) Output
    Receiver: 1x BNC (3G-SDI) Output
    Receiver: 1x USB-C (Unspecified Signal) Output
    Embedded Audio
    HDMI/SDI/USB/Wireless
    Wireless
    Wi-Fi 6E (802.11ax) / Bluetooth / 2.4 GHz Radio/RF / 5.1 GHz Radio/RF
    Latency
    < 50 ms
    Video Format
    HDMI
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    SDI
    1080p: 60/59.94/50/29.97/25/24/23.98
    Battery

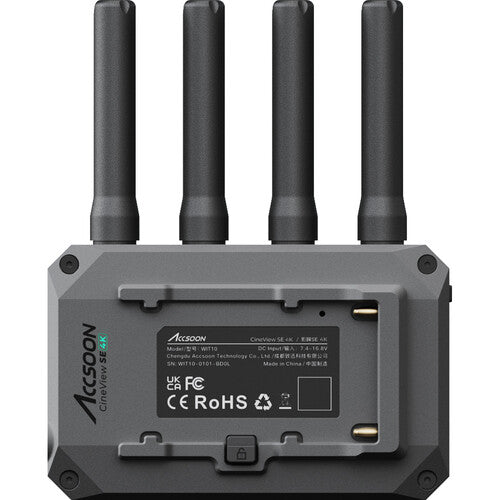

    Transmitter: 1x L-Series Mount on Fixed Plate
    Receiver: 1x L-Series Mount on Fixed Plate
    Inputs/Outputs
    Antenna I/O

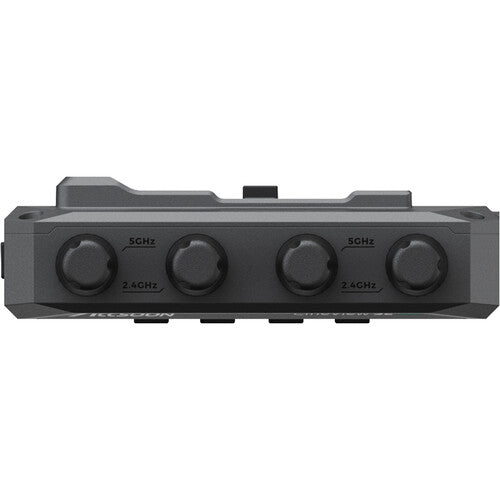

    Transmitter/Receiver: 4x RP-SMA
    Video I/O
    Transmitter: 1x HDMI (Unspecified Signal) Input
    Transmitter: 1x BNC (3G-SDI) Input
    Transmitter: 1x USB-C (Unspecified Signal) Output

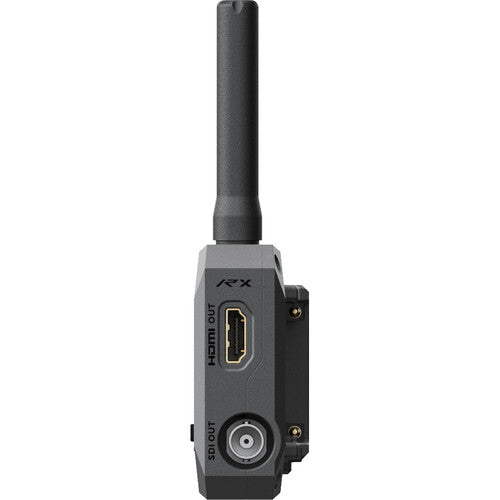

    Receiver: 1x HDMI (Unspecified Signal) Output
    Receiver: 1x BNC (3G-SDI) Output
    Receiver: 1x USB-C (Unspecified Signal) Output
    Embedded Audio
    HDMI/SDI/USB/Wireless
    Audio I/O
    No
    Power I/O

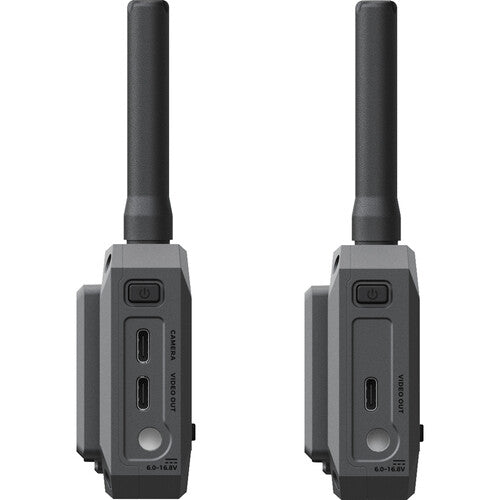

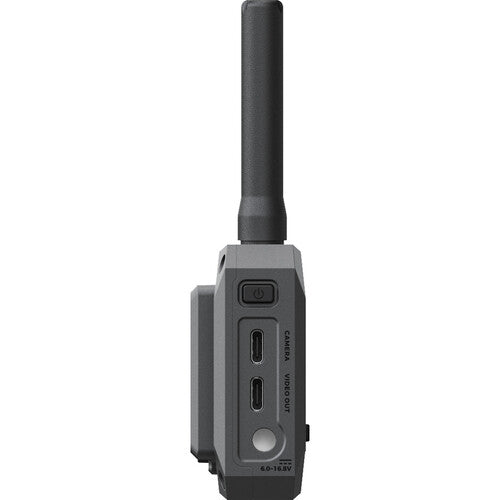

    Transmitter: 1x USB-C (16.8 VDC) Input
    Other I/O
    Transmitter: 1x USB-C Input/Output
    Wireless
    Wireless
    Wi-Fi 6E (802.11ax) / Bluetooth / 2.4 GHz Radio/RF / 5.1 GHz Radio/RF
    Wireless Range
    1312.3' / 400 m (Line-of-Sight)
    # of Channels
    20
    Latency
    < 50 ms
    RF Power
    17 dBm
    Wi-Fi
    Wi-Fi 6E (802.11ax): Dual-Band (2.4 & 5 GHz) with MU-MIMO Support
    Bluetooth
    Yes
    Mobile App Compatible
    Yes: Android & iOS
    App Name: SEE
    Functionality: Adjust Settings, Remote Control
    Cellular Support
    No
    Format Support
    Video Format
    HDMI
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98

    SDI
    1080p: 60/59.94/50/29.97/25/24/23.98
    Audio Format
    Not Specified by Manufacturer
    Timecode Support
    No
    Power
    Input Power
    6 to 16.8 VDC
    Battery
    Transmitter: 1x L-Series Mount on Fixed Plate
    Receiver: 1x L-Series Mount on Fixed Plate
    Mounting

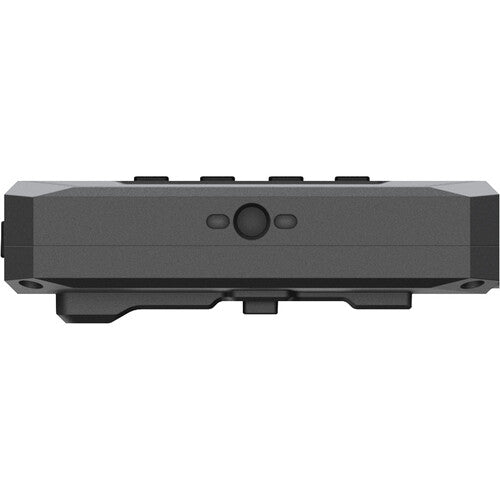

    Tripod/Accessory Mounting
    Transmitter
    1x 1/4"-20 Female

    Receiver
    1x 1/4"-20 Female
    General
    Status Display
    On Transmitter & Receiver
    Environmental Resistance
    No
    Operating Conditions
    14 to 104°F / -10 to 40°C
    Dimensions
    Transmitter/Receiver: 4.3 x 2.9 x 1.3" / 110 x 74 x 32.7 mm (Excluding Antenna)
    Weight
    Transmitter/Receiver: 8.64 oz / 245.00 g
    Packaging Info
    Package Weight
    2.005 lb
    Box Dimensions (LxWxH)
    7.9 x 6 x 2.2"
