Product Highlights

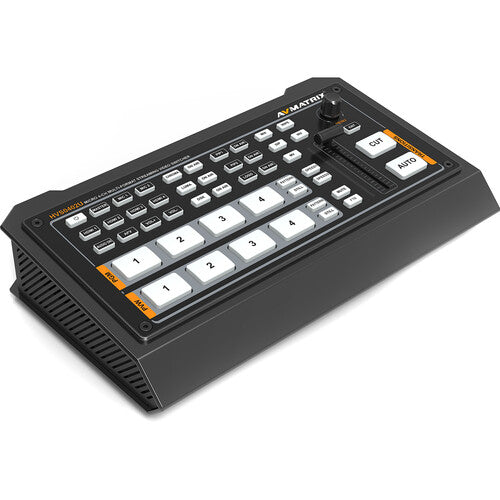

- Compact 4-Channel Video Switcher
- 4 x Autodetected HDMI Inputs
- HDMI PGM and Multiview Outputs
- 1 x USB Type-C Output to Computer Apps
- Supports up to 1080p60 Video I/O
- Luma/Chroma Key, Mix/Fade/Wipe Effects
- T-Bar, Auto, and Cut Transitions
- Audio Mixing, Multiview, PiP Layout
Specs
AVMATRIX HVS0402U Specs
Available M/E Layers | 2 M/E |
Effect Types | 1 x Graphic, Transition, Chroma Key, Alpha Key, Luma Key |
Graphics Memory | 32 Images |
Downstream Keys | 1 x Chroma, Luma, DVE |
Generators | 2 x Color 1 x Pattern |
Audio Mixing | 2-Channel Mixing |
Processing
Switching Type | Pushbutton, Software, T-Bar |
Processing Resolution | 1080p |
Color Processing | YUV RGB |
Input
Number of Video Input Sources | 4 |

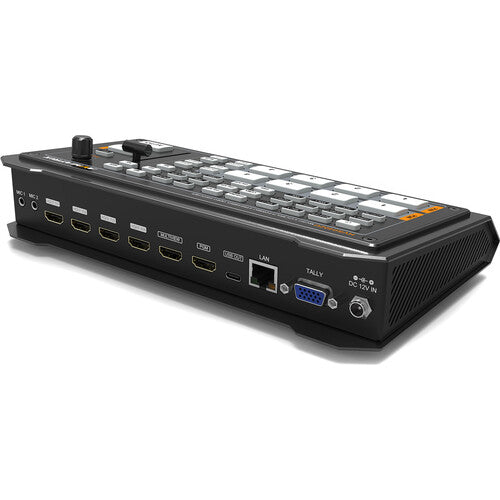

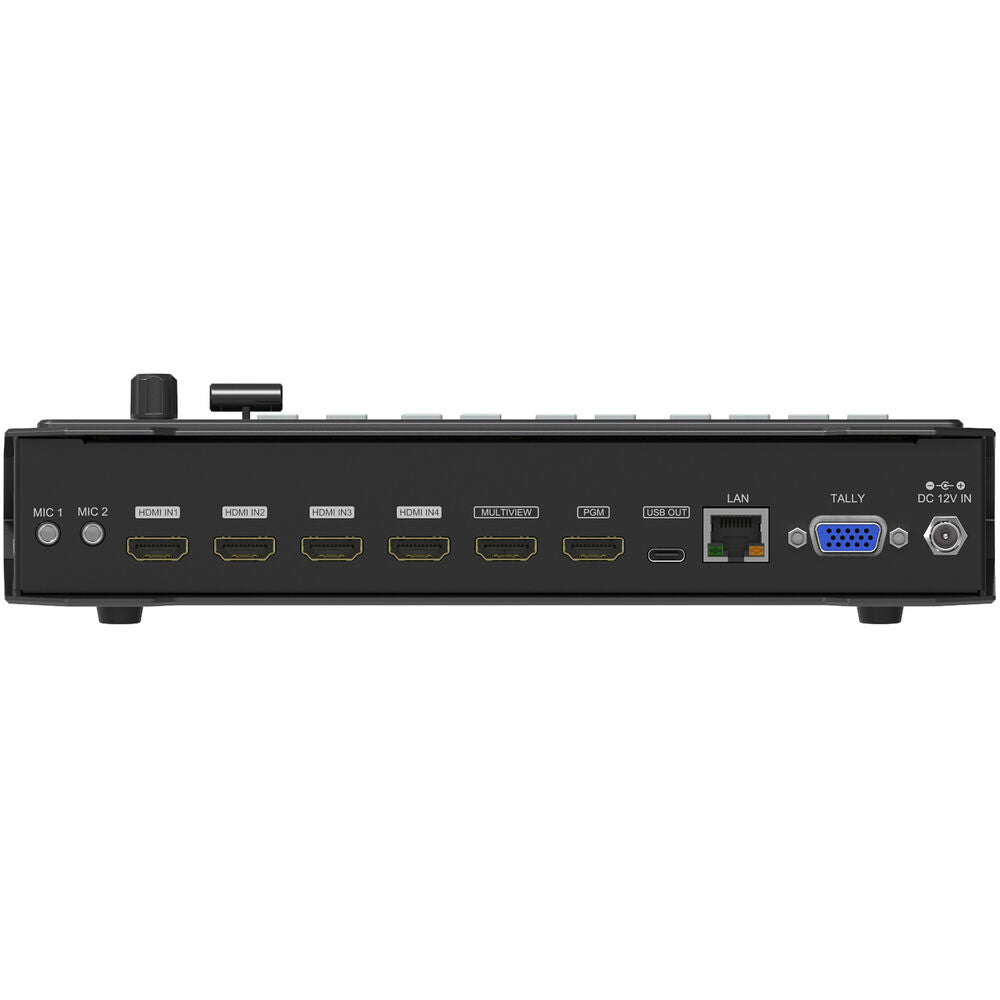

Video Input Connectors | 4 x HDMI Female |
Input Video Format | HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps 576p: 50 fps PAL: 50 fps 480p: 59.94/60 fps NTSC: 59.94/60 fps |
Audio Input Connectors | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
Input Audio Format | Analog |
Embedded Audio Input | HDMI: 2-Channel (per Input) |
Output
Video Output Channels | 2 |
Video Output Connectors | 1 x HDMI Female (Program) 1 x HDMI Female (Monitor) 1 x USB Type-C (USB Video) Female |
Output Video Format | HDMI 1080p: 24/25/30/50/60 fps 1080i: 50/60 fps USB Type-C 1080p: 60 fps |
Audio Output Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) |
Output Audio Format | Analog |
Embedded Audio Output | HDMI: 2-Channel (per Output) USB Type-C: 2-Channel (per Output) |
Multiview Output | 4-Way Multiview viaHDMI |
Monitor Output | 1 x HDMI |
Connectivity
Other I/O | 1 x DE-15/DB-15 Tally Input 1 x RJ45 LAN Input/Output 1 x USB Type-A Firmware, Service Input |
Video Standard Compliance | SMPTE 259M/292M/424M |
HDCP Support | None |
Compatible Services | Facebook Live, Livestream, Skype, Twitch, YouTube Live |
Recording Media | 1 x USB 2.0 Type-A(External Drives) |
Power Connector | 1 x Barrel (7 to 24 VDC) Input |
Power Consumption | Device: 12 VDC at 1 A (12 W) Power Supply: 12 VDC at 2 A |
Environmental
Operating Temperature | -4 to 140°F / -20 to 60°C |
Storage Temperature | -22 to 158°F / -30 to 70°C |
General
Dimensions | 9.63 x 5.64 x 1.75" / 24.45 x 14.32 x 4.45 cm |
Weight | 2.3 lb / 1 kg |
Packaging Info
Package Weight | 3.23 lb |
Box Dimensions (LxWxH) | 13 x 7.7 x 3.5" |
