Product Highlights

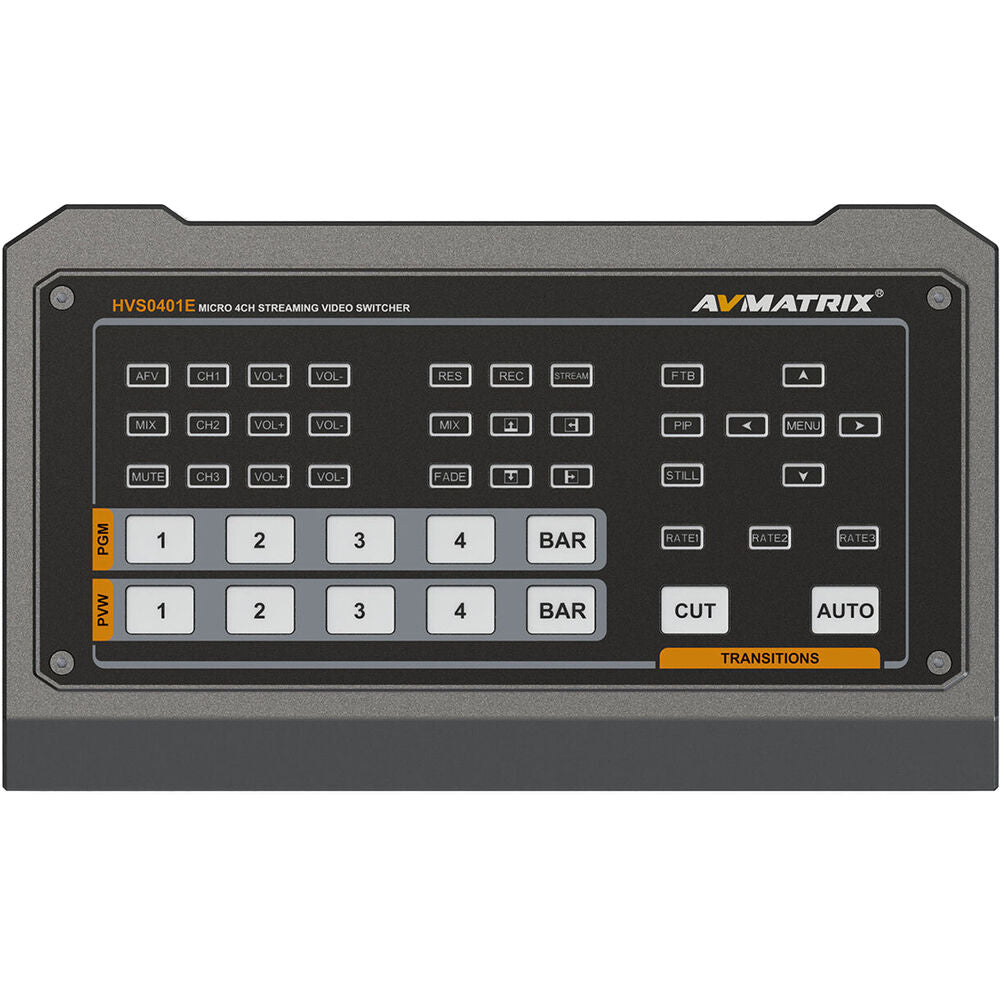

- Compact 4-Channel Video Switcher
- 1 x DisplayPort & 4 x HDMI Inputs
- 1 x HDMI Multiview & 2 x HDMI PGM Out
- RTMP Streaming via RJ45 LAN Port
- 1 x USB-A & 1 x USB-C Output
- Supports up to 1080p60 Video In/Out
- T-Bar, Auto & Cut Transitions
- Audio Mixing, Multiview Output
- Adjustable PiP Size & Positioning
- DB-15 Tally Output, Fade to Black
Specs
AVMATRIX Micro 4 Specs
Processing
Switching Type | Pushbutton, Software, T-Bar |
Processing Resolution | 1080p at 23.98/24/25/29.97/30/50/59.94/60 |
Color Processing | RGB YCbCr |
Input
Video Input Connectors | 4 x HDMI Female 1 x DisplayPort Female |
Input Video Format | HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 24/25/30/50/59.94/60 fps 576p at 50 fps 576i / 625 lines at 50 fps 480p at 59.94/60 fps 480i / 525 lines at 59.94/60 fps |
Audio Input Connectors | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x 2RCA Stereo Analog |
Input Audio Format | Analog |
Output
Video Output Connectors | 2 x HDMI Female (Program) 1 x HDMI Female (Monitor) 1 x USB-C (USB Video) Female |
Output Video Format | HDMI 1080p at 24/25/30/50/60 fps 1080i at 50/60 fps USB-C 1080p at 60 fps |
Audio Output Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) |
Connectivity
Other I/O | 1 x RJ45 LAN Input/Output 1 x DE-15/DB-15 Tally Input |
HDCP Support | None |
Wi-Fi | None |
Power
Power Connector | 1 x Barrel (12 VDC at 1.2 A) Input |
Power Consumption | Device: 14.4 W |
Environmental
Operating Temperature | 12 to 92°F / -20 to 60°C |
Storage Temperature | -22 to 158°F / -30 to 70°C |
General
Dimensions | 93.9 x 55.3 x 17.5" / 238.5 x 140.4 x 44.5 cm |
Weight | 2.1 lb / 968.3 g |
Packaging Info
Package Weight | 3.005 lb |
Box Dimensions (LxWxH) | 13.7 x 8.6 x 3.5" |
