Blackmagic Design Teranex AV

filler

Price:
Sale priceGH₵42,700
Stock:
Sold out
Product Highlights
  • Dual SD/HD/3G/6G/12G-SDI I/O
  • Quad-Link SDI Output
  • HDMI 2.0 Input and Output
  • Supports SD, HD, 2K, and UHD 4K
  • Automatic Input Signal Detection
  • Redundant SDI Input & Looped SDI Output
  • 24-Bit, 48 kHz Audio
  • XLR and RCA Audio Inputs

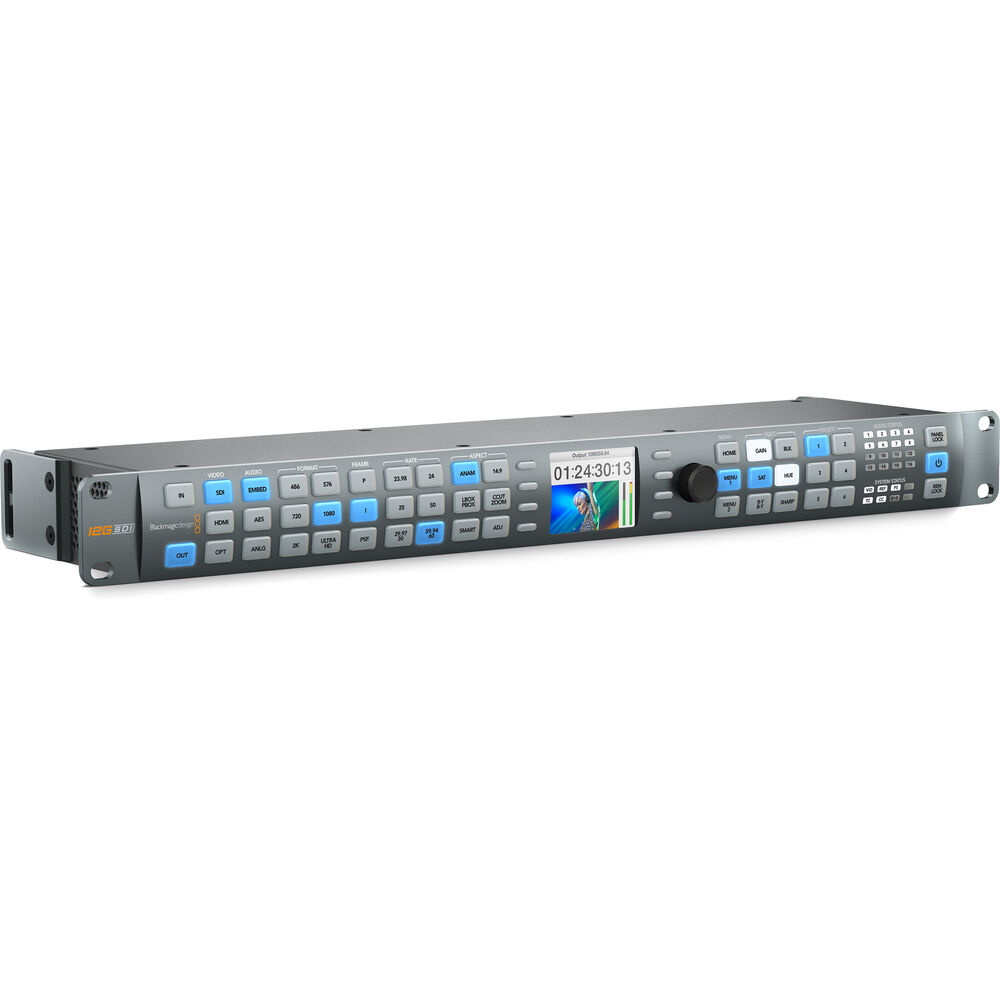

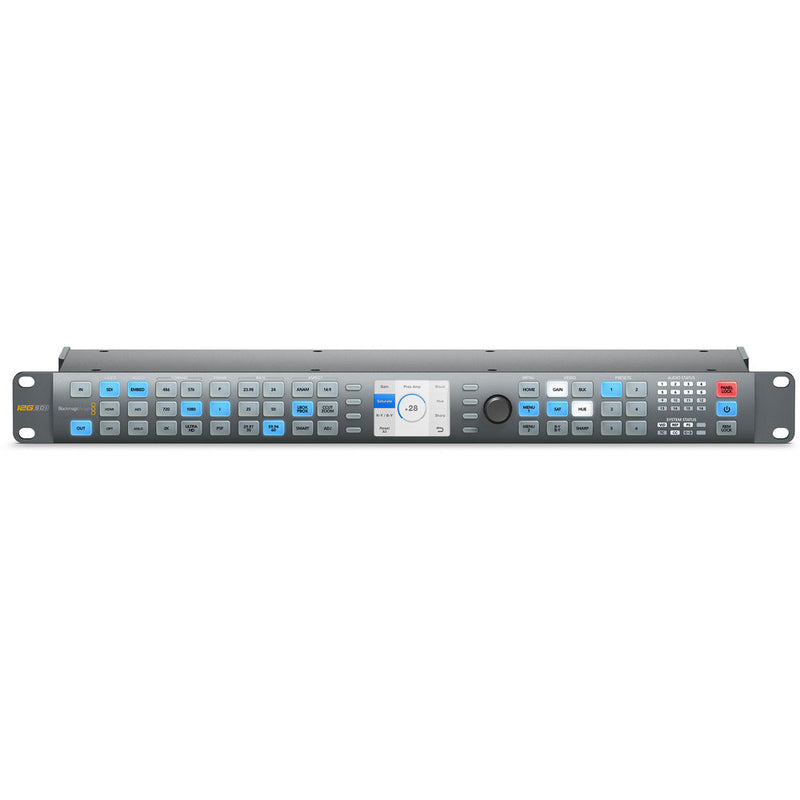

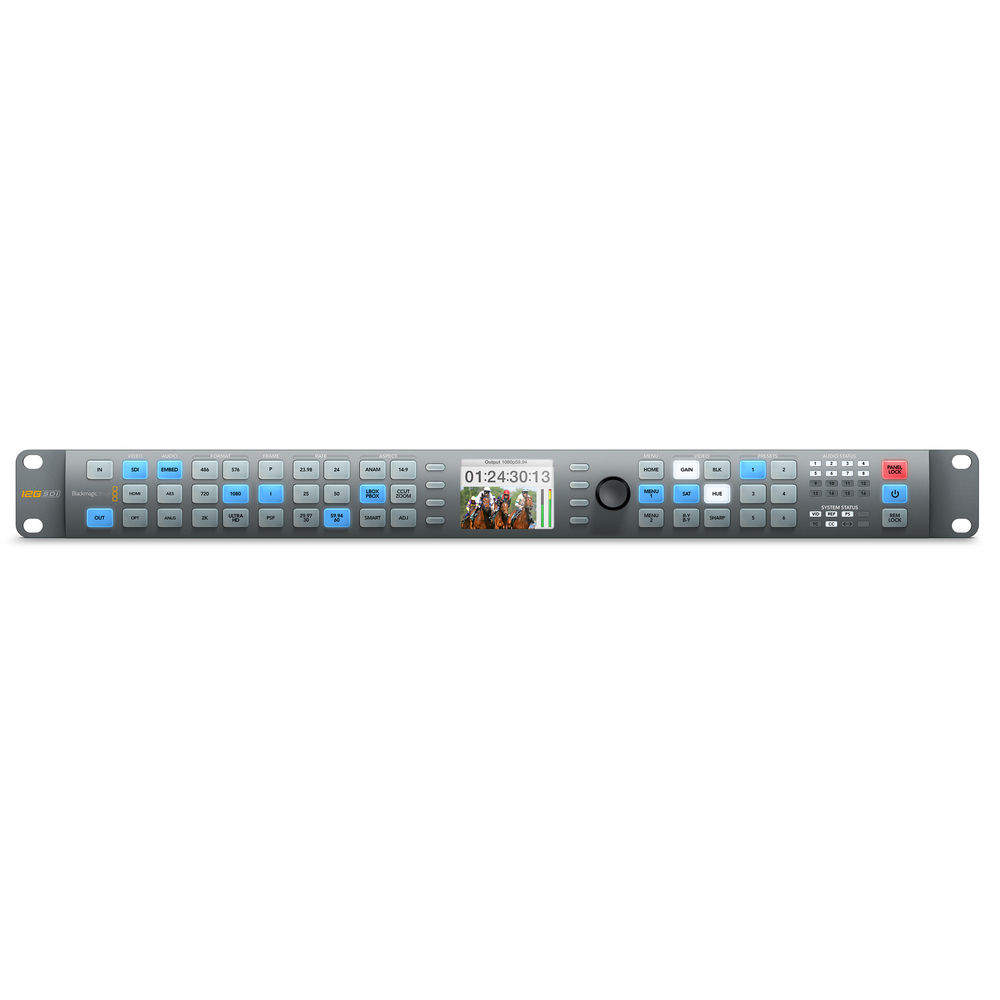

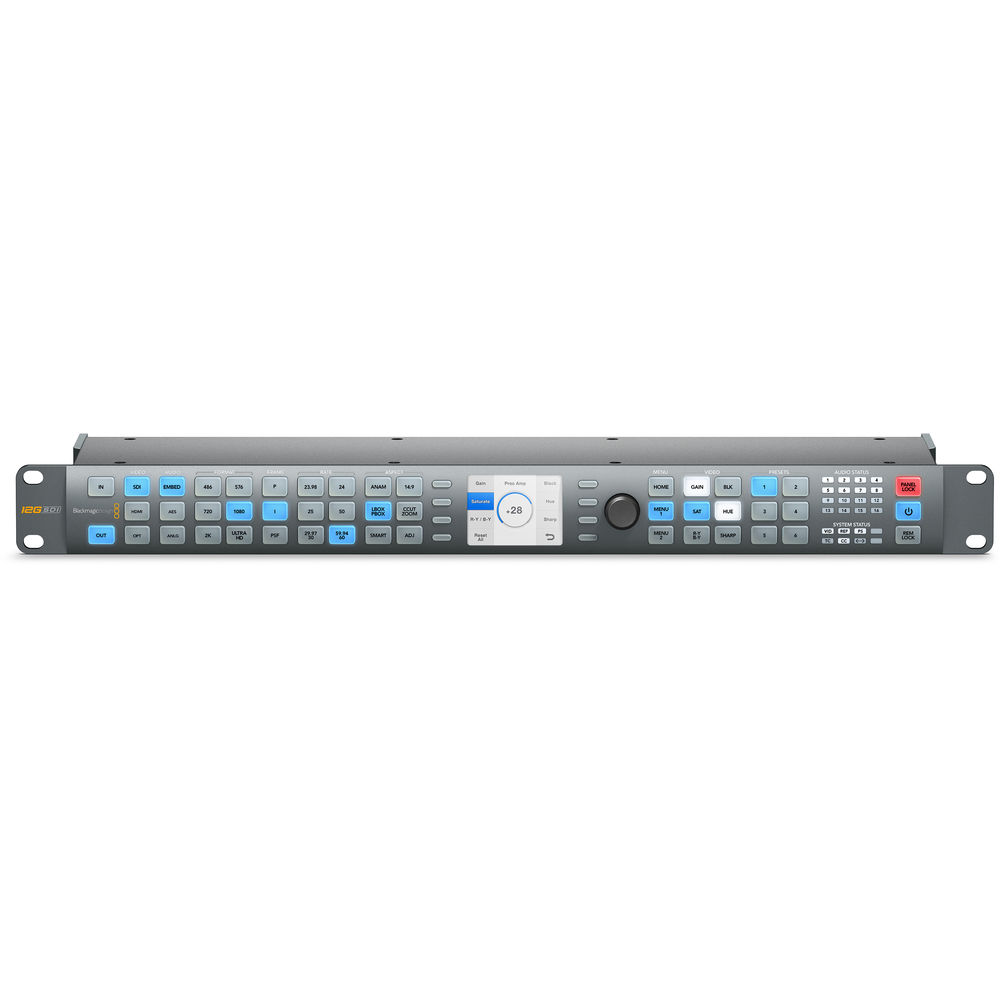

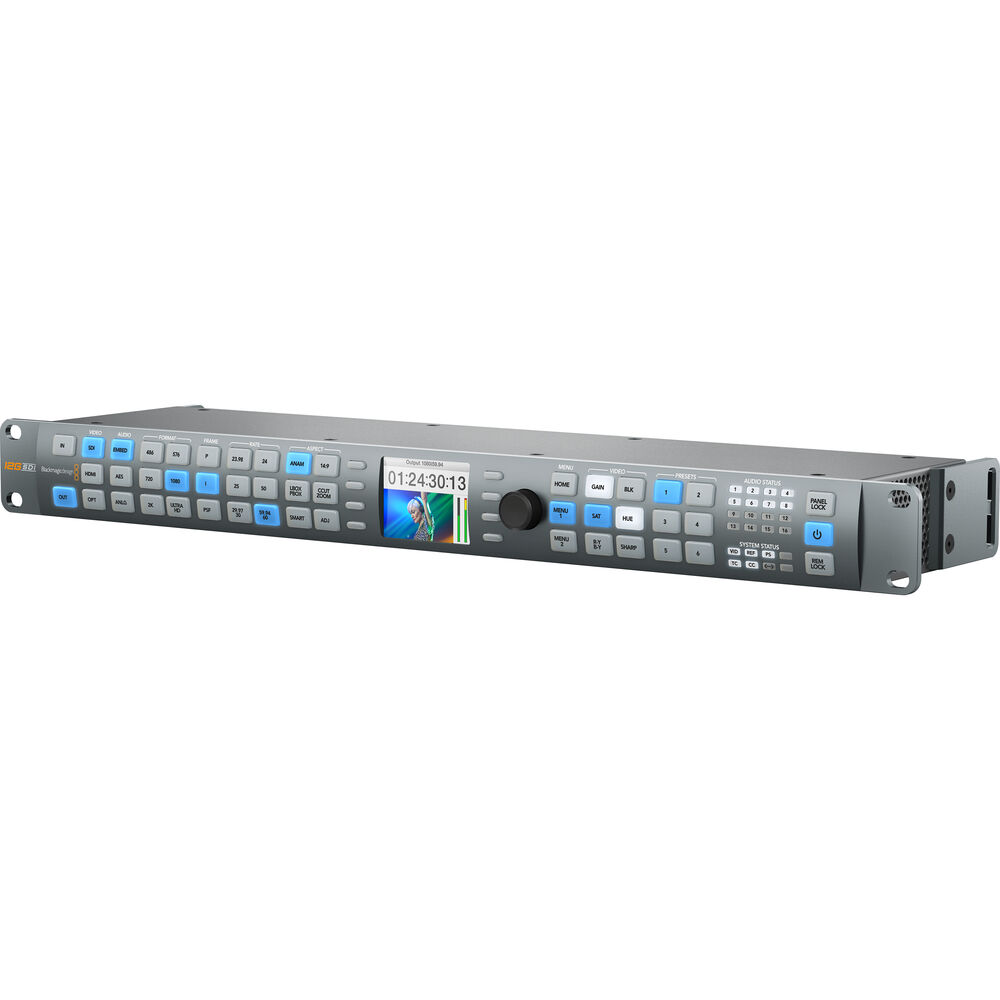

  • Front-Panel Controls
  • Software Control via RJ45 Ethernet





    Specs

    Blackmagic Design Teranex AV Specs

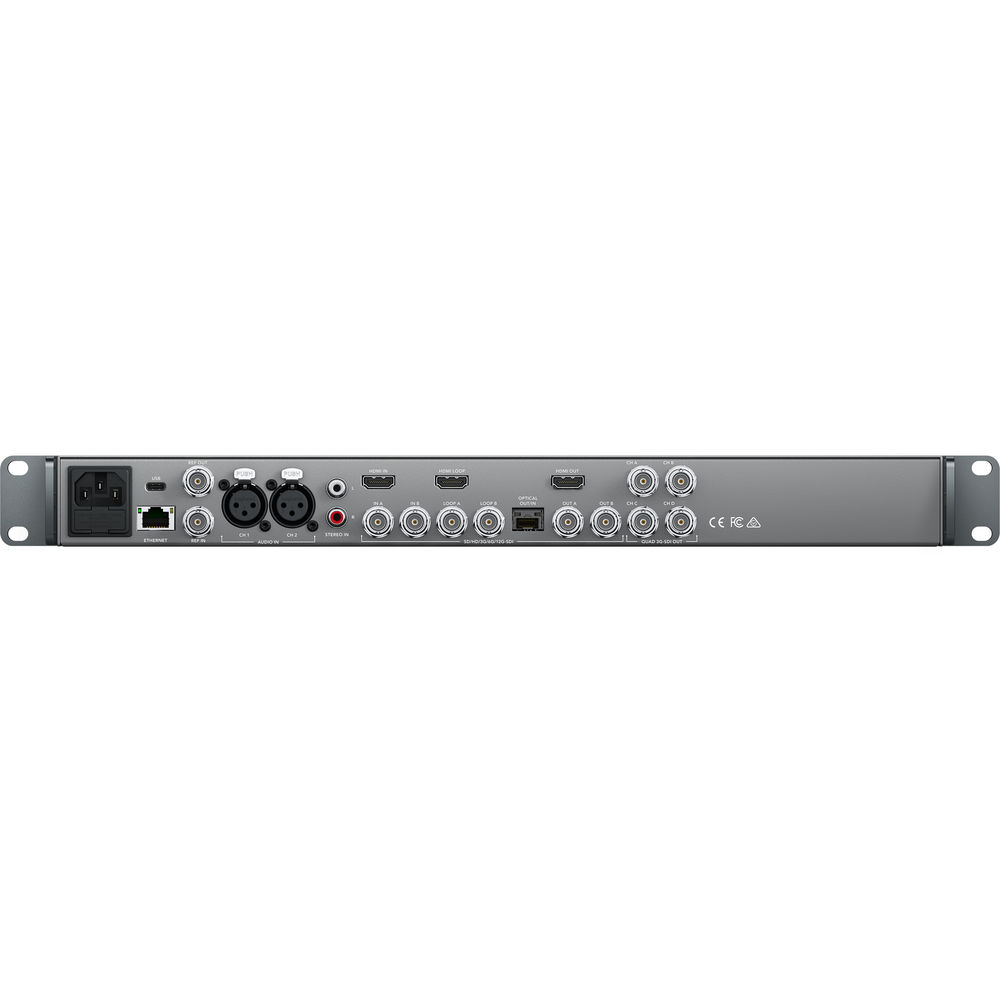

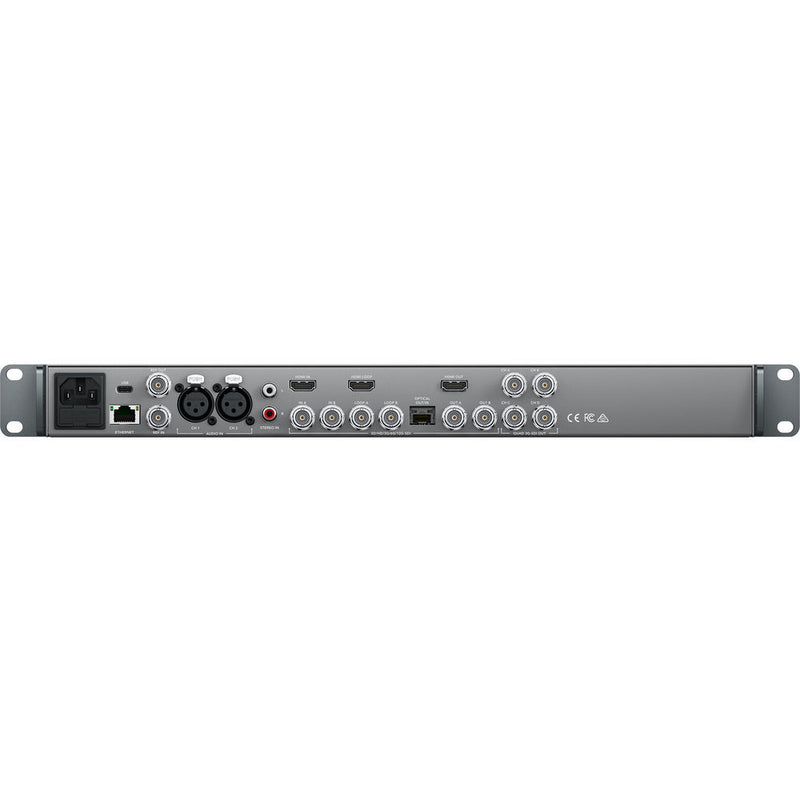

    Inputs
    2 x BNC, SD/HD/3G/6G/12G-SDI (inputs can be separate or unified for dual-link functionality)
    1 x HDMI Type A, v2.0
    1 x Optical fiber (optional)
    1 x Stereo RCA, analog audio
    2 x XLR, balanced analog audio, AES/EBU digital audio
    1 x BNC, reference
    1 x USB-C
    1 x RJ45, Ethernet
    Outputs
    2 x BNC, SD/HD/3G/6G/12G-SDI (outputs can be separate or unified for dual-link functionality)
    4 x BNC, SD/HD/3G-SDI (quad-link 4K output or replicated SDI output option)
    1 x HDMI Type A, v2.0
    1 x Optical fiber (optional, not available with dual-link operation)
    1 x BNC, reference output
    Format Support
    3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60
    2048 x 1080p: 23.98/24
    2048 x 1080PsF: 23.98/24
    1080p: 23.98/24/25/29.97/30/50/59.94/60
    1080PsF: 23.98/24/25/29.97/30
    1080i: 50/59.94/60
    720p: 50/59.94/60
    NTSC
    PAL
    SDI Compliance
    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
    SDI Metadata Support
    VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
    Audio Sampling
    HD: 24-bit, 48 kHz
    SD: 20-bit, 48 kHz
    Video Sampling
    4:2:2
    Color Depth
    10-bit
    Color Space
    REC 601, REC 709
    Compatible Operating Systems
    Mac OS X 10.10 or later
    Windows 8.1, 10
    Power Input
    1 x IEC, 100-240 VAC, 50-60 Hz
    Environmental
    Operating Temperature: 41 to 122°F / 5 to 50°C
    Storage Temperature: -4 to 113°F / -20 to 45°C
    Relative Humidity: 0-90%, non-condensing
    Dimensions
    19 x 1.75 x 5" / 48.3 x 4.4 x 12.7 cm
    Weight
    4.4 lb / 2 kg
    Packaging Info
    Package Weight
    4.365 lb
    Box Dimensions (LxWxH)
    19.4 x 5.6 x 3.1"
