KT-KD50X Kato Vision Universal Control Panel for ATEM/vMix/OBS - USB & LAN

Save GH₵1,551
filler

Price:
Sale priceGH₵8,799 Regular priceGH₵10,350
Stock:
In stock
Product Highlights

Integrated hardware design:

Easy-to-use ,fully embedded system with simplified structure, integrating director switching, audio adjustment and special effects & transitions all in one.

Multi-functional system control integration, two-color colorful LED crystal buttons

Support the suggestion control of mainstream director hardware and software in the market such as ATEM, vMix and OBS, and set the corresponding protocol with one button in the menu, plug and play.

With red and green dual-color colorful LED crystal buttons, the effect of the director position is clear at a glance.

Flexible video mixing and switching with multi-channel 4M/E

Compatible with ATEM 1 M/E - 4 M/E, providing flexible video mixing and switching capabilities to support a variety of complex video production needs.

High quality aluminum alloy T-BAR fader

Aluminum alloy high-quality T-BAR fader, combined with nine-level LED light progress bar, has a very directing style.

Brand-new upgrade function, custom combination to play more effects:

The brand-new upgrade ATEM function supports quick operation of ATEM popular functions such as S/SRC, MACRO, AUX, M/E, etc., and supports custom function settings to output.

Supports up to 12 channels of live video switching:

Both ATEM and vMix support 12 channel PGM+12 channel PVW live switching.

Built-in custom audio adjustment function:

Customized audio settings support Audio、 XLR、 MIC、MP and other multi-channel audio control functions.

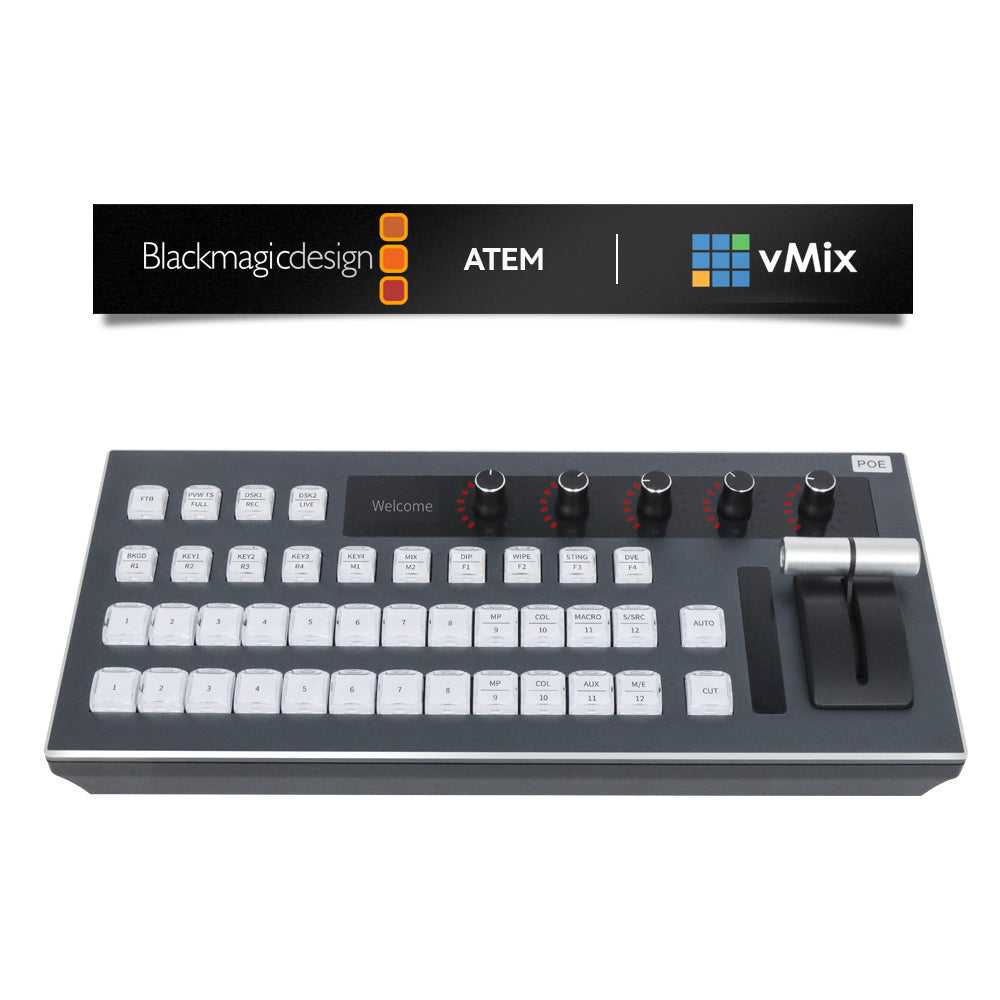

Compatible with plenty of live broadcast software:

In addition to supporting ATEM series devices, it also supports MIDI protocol, compatible with vMix and other various live broadcast software.Complete the control of functions such as directing, transitions, tuning, one-key black screen, etc., multi-purpose machine is more worry-free.

Support 24-channel tally output function:

Built-in DP25 tally interface, supports up to 24 tally signal output functions.

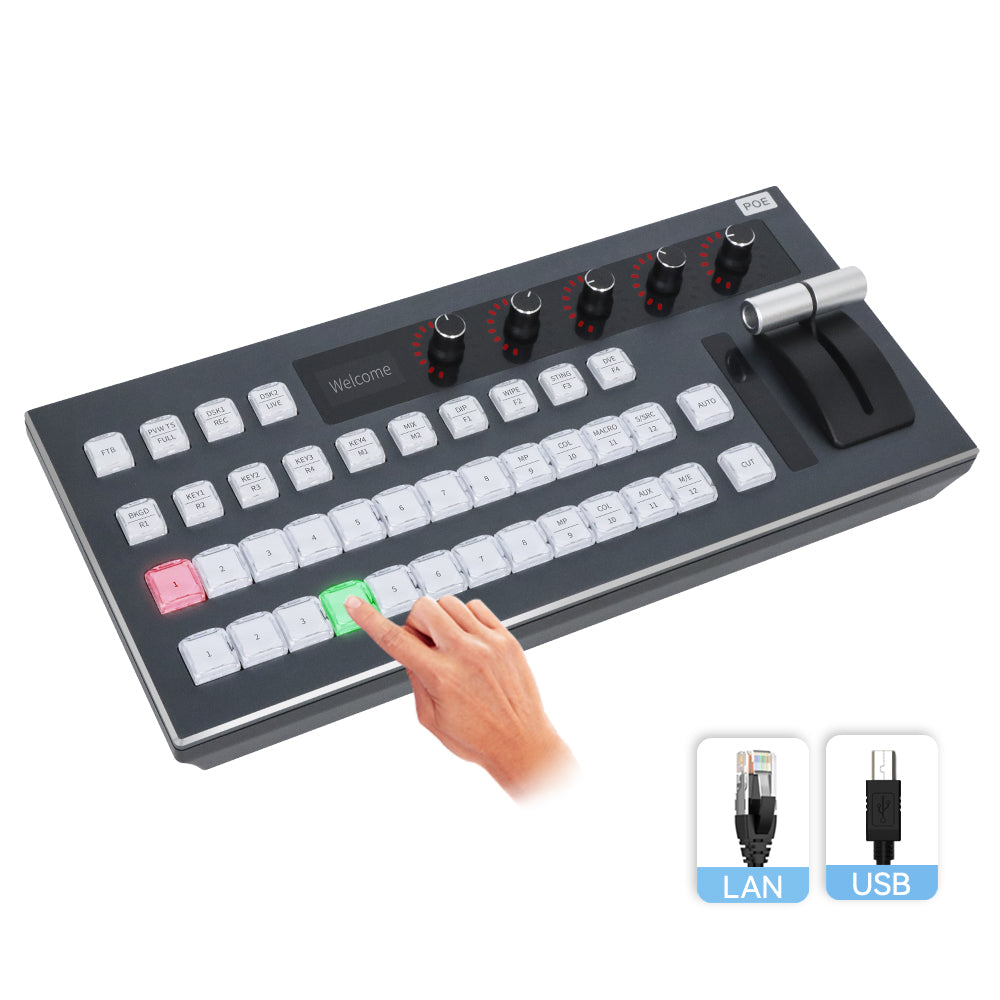

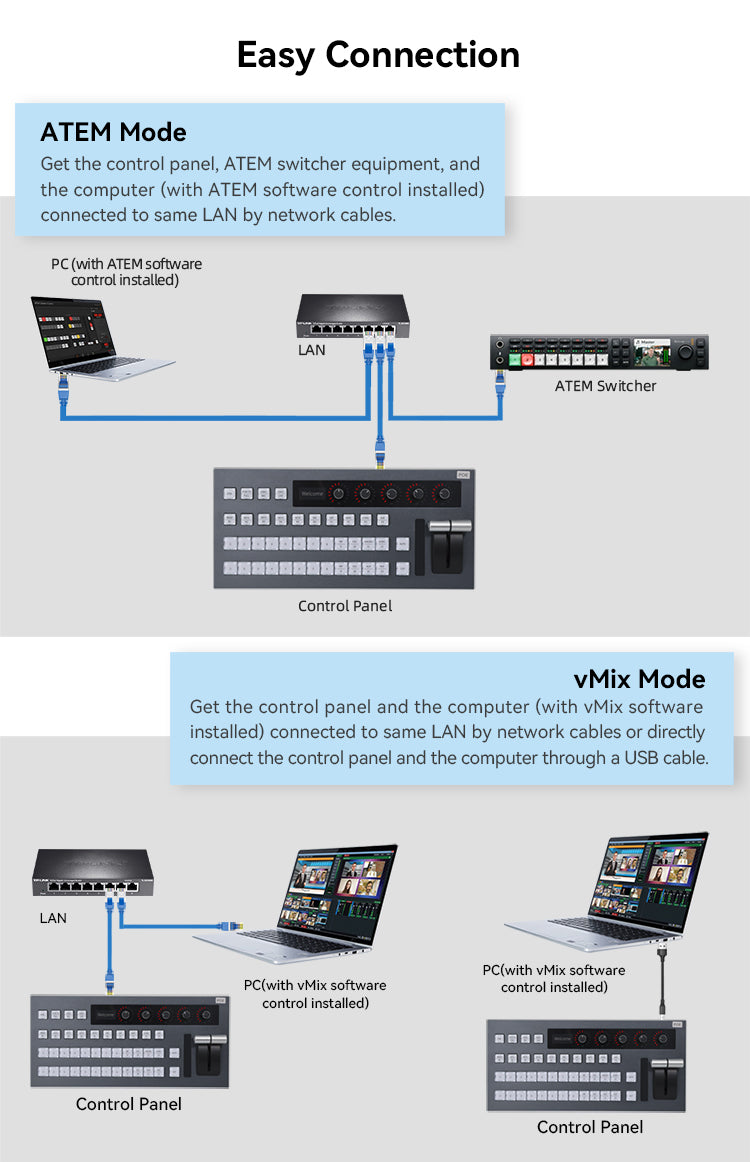

USB 2.0, LAN dual interface connections, simple and convenient:

Supports LAN and USB 2.0 drive-free connections ( Note: ATEM only supports LAN connection ), and can transmit video signals to computers and live video production software without a capture card, simple and convenient.

All aluminum alloy body:

Anodized aluminum alloy panel process treatment, outstanding quality

    Specs

    KT-KD50X Specs

    Main Parameters

    Audio Control

    1ch master+4ch input

    Transition Control

    Auto transitions, hard cuts, T-Bar

    OLED Display

    Set device parameters

    Indicator Light

    Indicate switcher status

    Tally

    12ch PGM+12ch PVW

    ATEM Functions:

    Connection Method

    100M LANsupport POE 802.3af

    Video Control

    12ch inputs

    Transition Effects

    MIX / DIP / WIPE / STING / DVE

    Upstream Keyboard

    BKGD / KEY1 / KEY2 / KEY3 / KEY4

    Downstream Keyboard

    DSK1 / DSK2

    FTB

    Support

    PREV TRANS

    Support

    MACRO

    Support

    S/SRC

    Support

    M/E

    Support

    AUX

    Support

    vMix Functions:

    Connection Method

    100M LANsupport POE 802.3afUSB

    Video Control

    12ch inputs

    Transition Effects

    4 kinds

    Picture-in-picture Function

    R1 / R2 / R3 / R4

    Playback Setting

    M1 / M2

    REC

    Support

    LIVE

    Support

    T-BAR

    Support

    Power Supply

    Input Voltage

    DC 12V

    Input Current

    0.3A

    Rated Power

    4W

    POE

    POE 802.3af for optional

    Powered by USB

    Support  ( rely on the USB power supply capability of the computer )

    General Specifications

    Use Environment

    Indoor

    Operating Temperature

    -10~40

    Storage Temperature

    -20-60

    Dimension

    (W)354*(D)165*(H)67mm

    Weight

    1.5kg

    Accessories

    Power adapter*1, USB cable*1, User manual*1
