Product Highlights

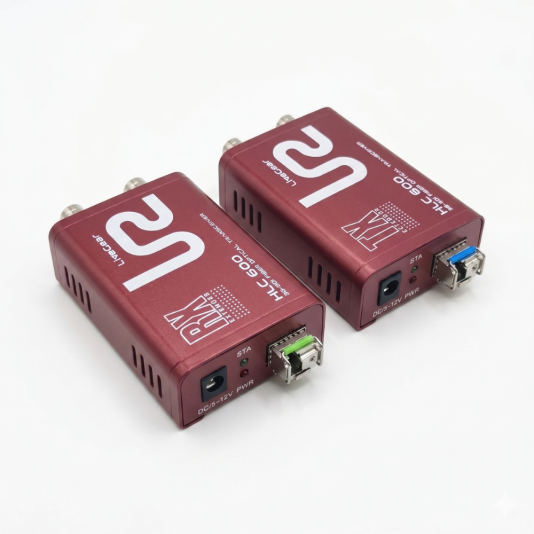

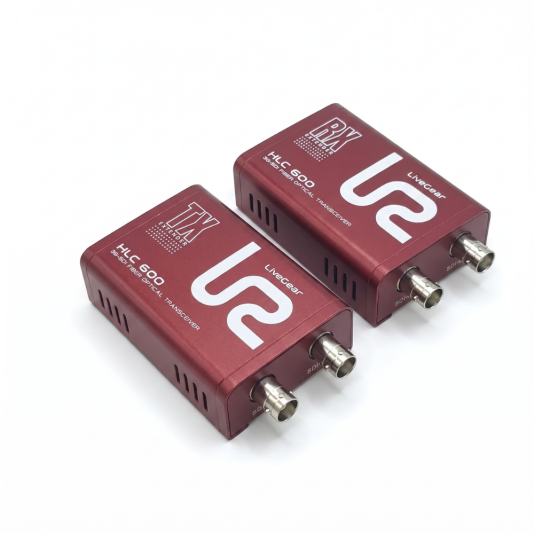

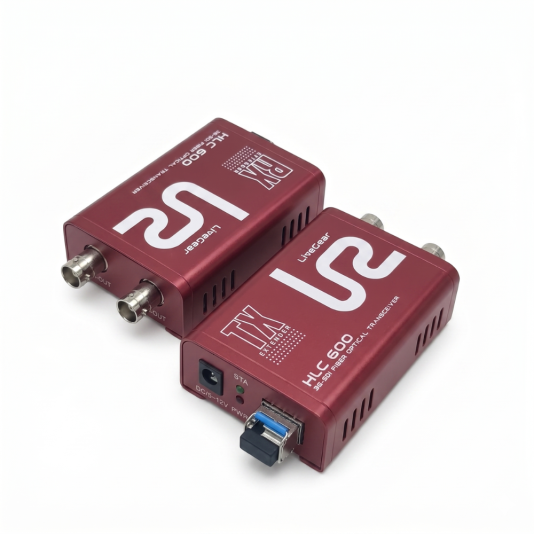

The HLC 600 is a high-performance fiber optic extender designed for reliable long-distance transmission of 3G/HD-SDI video and audio signals. It is an ideal solution for broadcasting, live events, and professional AV installations, offering a robust and efficient signal extension method.
- Long-Distance Transmission: Extends 3G/HD-SDI signals up to 20KM over a single fiber cable.
- High-Definition Support: Delivers pristine video resolutions up to 1920x1080P@60Hz.
- Lossless & Synchronous: Supports all-digital, lossless transmission with 8-channel embedded audio for perfect sync.
- Flexible Outputs: Features a local output at the transmitter and two-way synchronous output at the remote end.
- Wide Compatibility: Automatically identifies and configures various display modes, including PAL/NTSC.
- Robust & Reliable: Built-in automatic adjustment system for stable image quality, ESD protection, and a durable design.
- Easy Installation: Simple plug-and-play setup with support for hot-plugging.
Specs
HLC 600 Specs
|
Category |
Parameter |
Description |
|
Video |
Technical Norms |
SMPTE standard |
|
Video Bit Rate |
MAX 3.2 GB/Second |
|
|
Interface |
BNC |
|
|
Input/Output Cable Spec. |
≤150m (Belden 1694A cable standard) |
|
|
Input/Output Impedance |
75Ω |
|
|
Input/Output Voltage |
1Vpp; Min: 0.5Vpp / Max: 1.5Vpp |
|
|
Differential Gain |
<1% (10% ~ 90% APL) |
|
|
Supported Resolutions |
625/25 PAL |
|
|
Supported SDI Specs |
270Mbps (SD-SDI) |
|
|
Fiber |
Optical Interface |
LC |
|
Fiber Type |
Single mode, single fiber |
|
|
Wavelength |
1310nm / 1550nm |
|
|
Max Transmission Distance |
20KM |
|
|
Other |
Power |
DC 5~12V / 1A |
|
Power Consumption |
MAX 5W |
|
|
Temperature |
Operating: -20℃ ~ +70℃ |
|
|
Humidity |
Operating: 0 ~ 90% |
|
|
MTBF |
≥100,000 hours |
|
|
Dimensions (W*D*H) |
82 * 57 * 27 mm |
