Product Highlights
-
- 4-Channel Simultaneous Capture: Integrates four HDMI-to-USB capture channels via a USB hub, allowing users to display and switch between four independent audio and video signals at the same time.
- High-Resolution Support: Handles input and output up to 4K@60Hz (YUV420) and 4K@30Hz (YUV444), with UVC output capabilities reaching up to 4096x2160@60Hz (MJPEG) and 3840x2160@30Hz (YUV420).
- Plug-and-Play UVC Compliance: Fully compliant with standard UVC protocol requiring no extra drivers, ensuring seamless compatibility with broadcasting software like OBS, vMix, and Zoom, as well as mobile apps like "V Director Recording" on iPads and mobile devices.

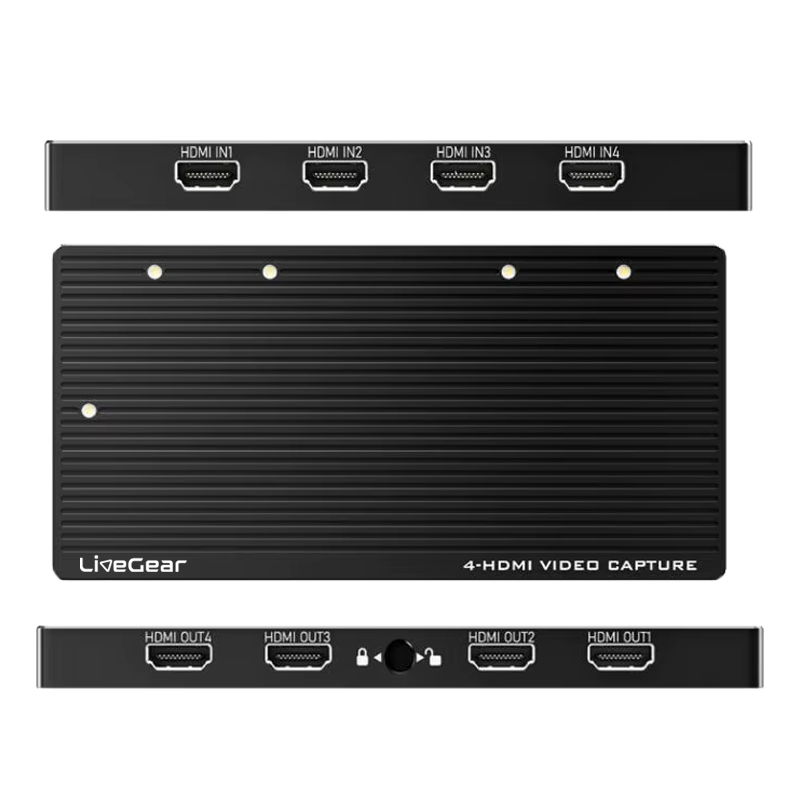

- Loop-Through Outputs: Features 4-channel HDMI outputs functioning as input loops to easily connect local monitoring screens.
- Versatile Audio & Power Management: Includes a stereo line audio input for connecting mixing consoles, a 100W PD fast-charging power port, and a 5V/2A DC-5V output to power external converters.
Specs
Caplink VC124 Specs
• Model: HN-4-HDMI-C

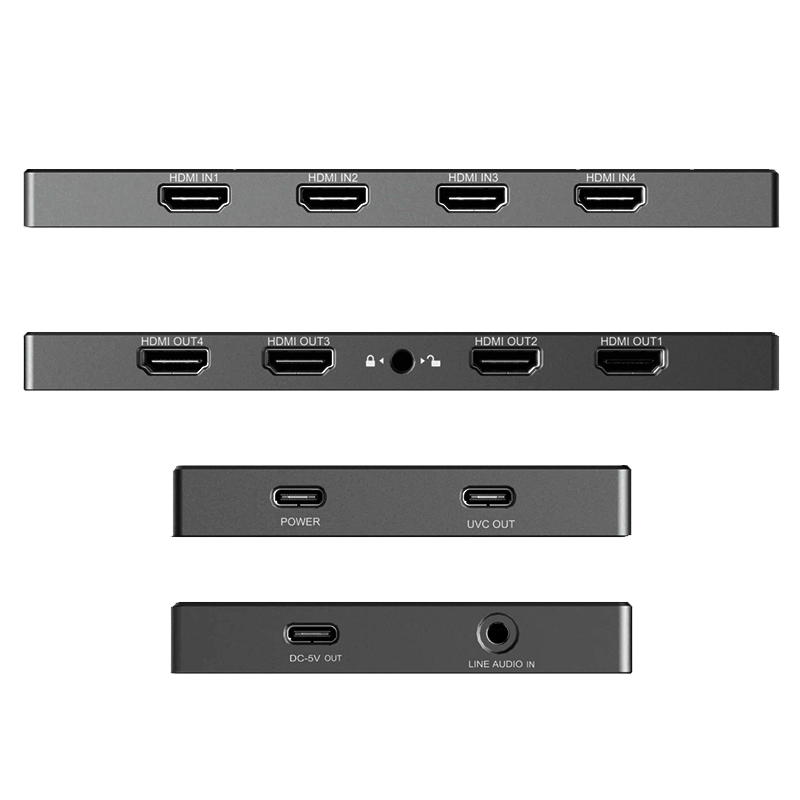

• HDMI Input: 4x HDMI ports supporting up to 4096x2160@30Hz (YUV444) and 4096x2160@60Hz (YUV420)
• HDMI Output: 4-channel loop-out supporting up to 4096x2160@60Hz (YUV420) and 4096x2160@30Hz (YUV444)
• UVC Output: 4 channels compliant with UVC 1.0 protocol; supports USB Audio/Video
• UVC Video Formats: YUV422, MJPEG, RGB24, NV12

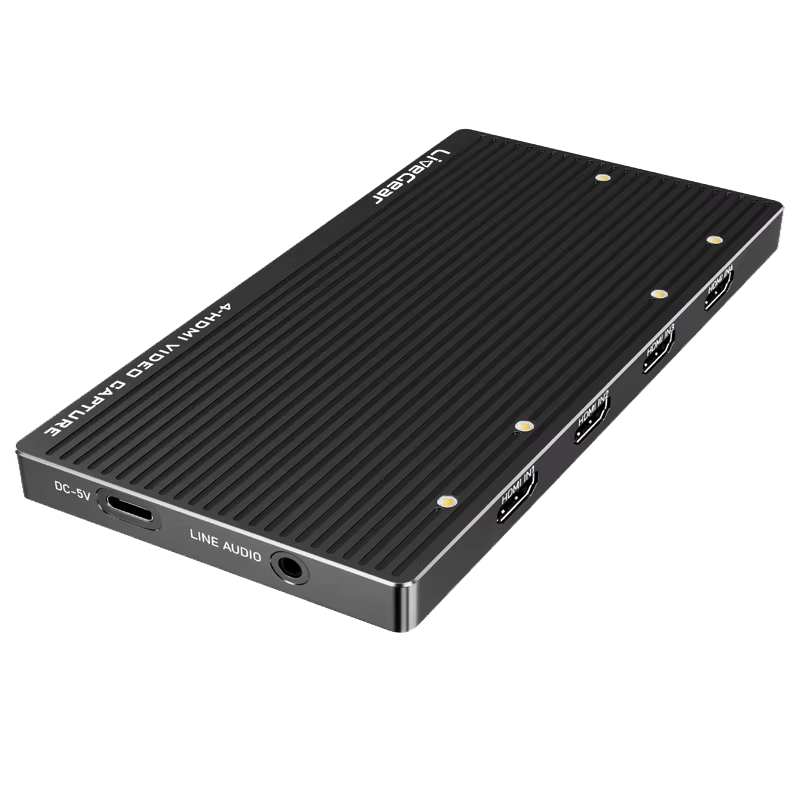

• Audio Support: Line Audio IN (Analog Stereo to I2S Input connected to Channel 1); default 48KHz/24bit Stereo with 5.1CH support
• Host Interface: Type-C USB 3.2 Gen 2x1 (10Gbps bandwidth recommended for high-resolution capture)

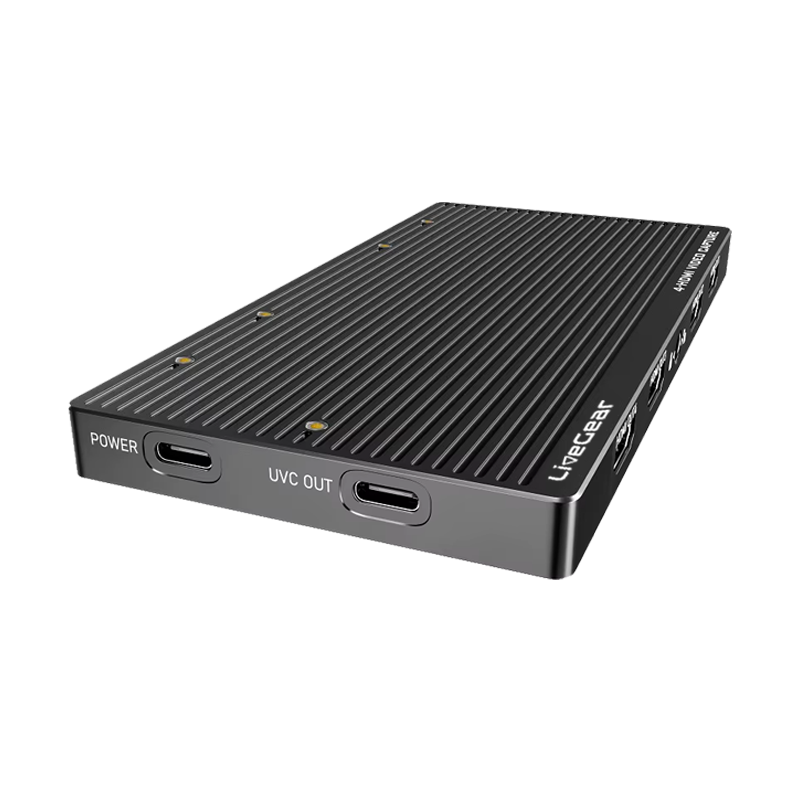

• Power & Auxiliary Outputs: POWER port supporting PD Fast-Charging Protocol (Max 100W); DC-5V OUT providing 5V/2A
• OS Compatibility: Windows XP/7/8/10/11, Android 5.0+, and macOS
• Physical Dimensions: 165mm x 82mm x 13mm (includes mounting holes with hot-shoe design)
• Weight: 220g
• Operating Temperature: -20°C to 50°C (Operating); -20°C to 80°C (Storage)
• Package Contents: 1x 4-Channel HDMI Capture Card, 1x USB 3.2 Gen 2 Data Cable (Type-C to Type-C), 1x User Manual & Warranty Card
