LiveGear 4K Caplink VC326 4CH HDMI 2CH SDI Capture card 4HDMI loop Out

filler

Price:
Sale priceGH₵3,690
Stock:
In stock
Product Highlights


        • Multi-Source Video Capture: Supports up to 6 total camera inputs (2 SDI cameras and 4 HDMI cameras) and can capture images from 4 cameras simultaneously.


        • Automatic Signal Prioritization: Features alternative inputs for SDI 1/HDMI 1 and SDI 2/HDMI 2 with automatic selection; when both signals are connected, HDMI takes priority.


        • Driver-Free Plug-and-Play: Adopts the standard UVC protocol for hassle-free operation with broadcasting software like OBS, vMix, and Zoom on computers, as well as the V Live & Recorder app on mobile devices and iPads.

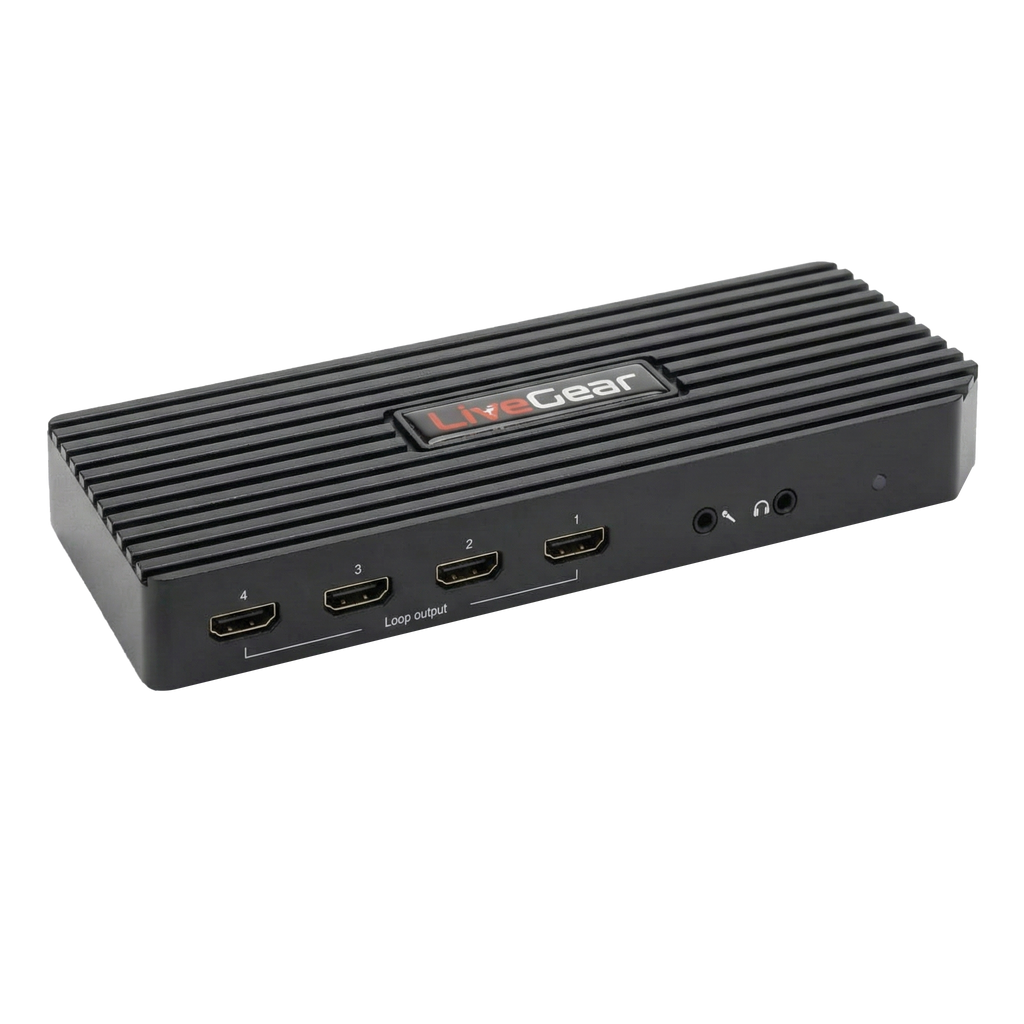

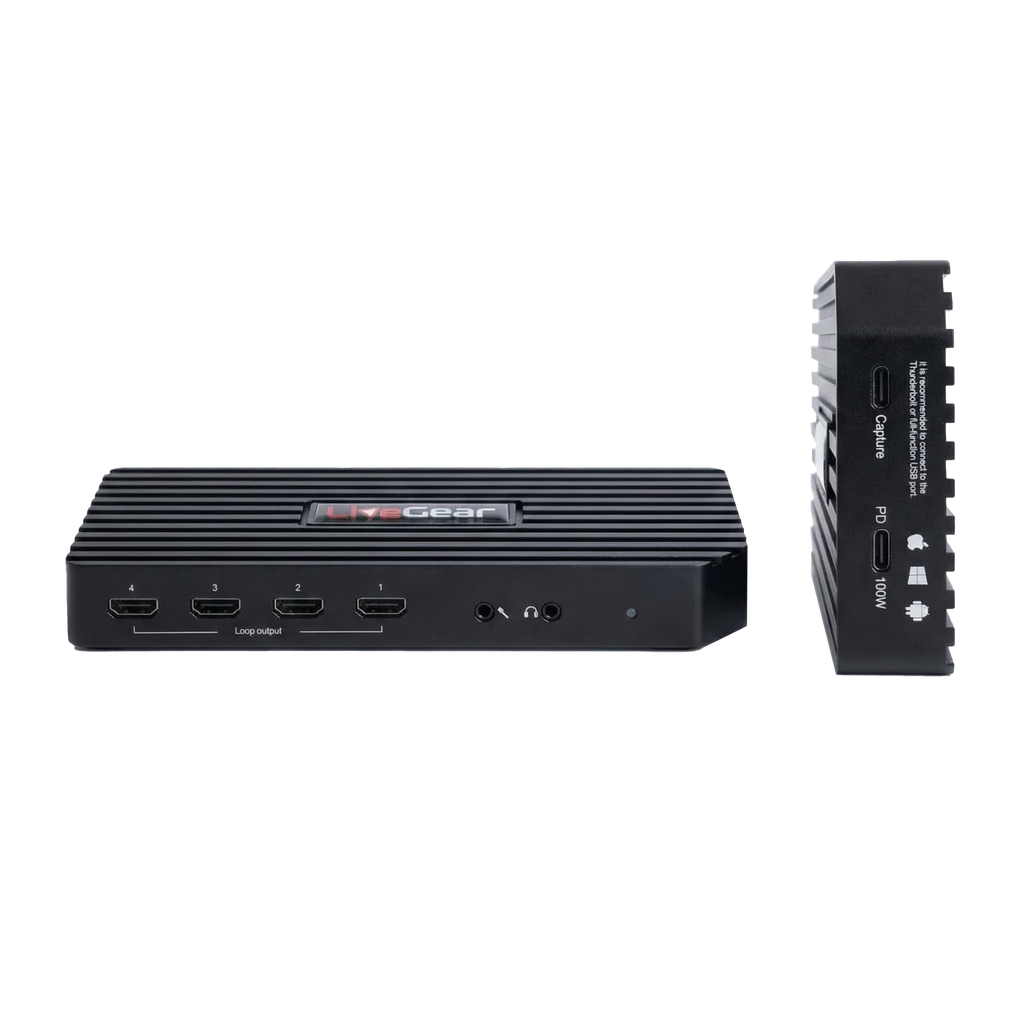

        • Versatile Loop-Out & Conversion: Includes 4-channel loop outputs matching the input video, allowing the device to double as a 2-channel SDI-to-HDMI converter when capture functions are not in use.


        • Flexible Power Delivery: Equipped with a PD 100W power port supporting 5V–20V input (up to 5A) that powers the capture card while automatically passing through charge to compatible connected computers or mobile devices.
      Specs

      Caplink VC326 Specs

      • Model: LiveGear VC326

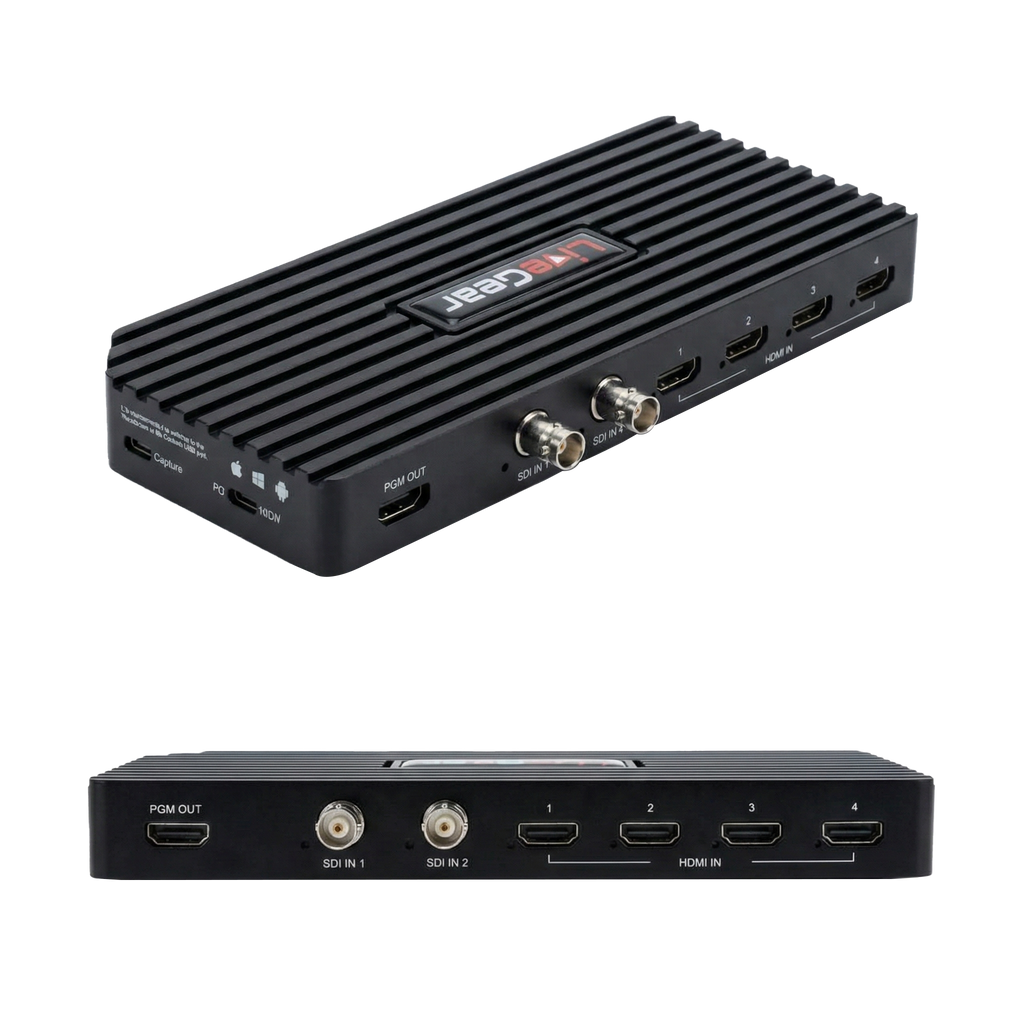

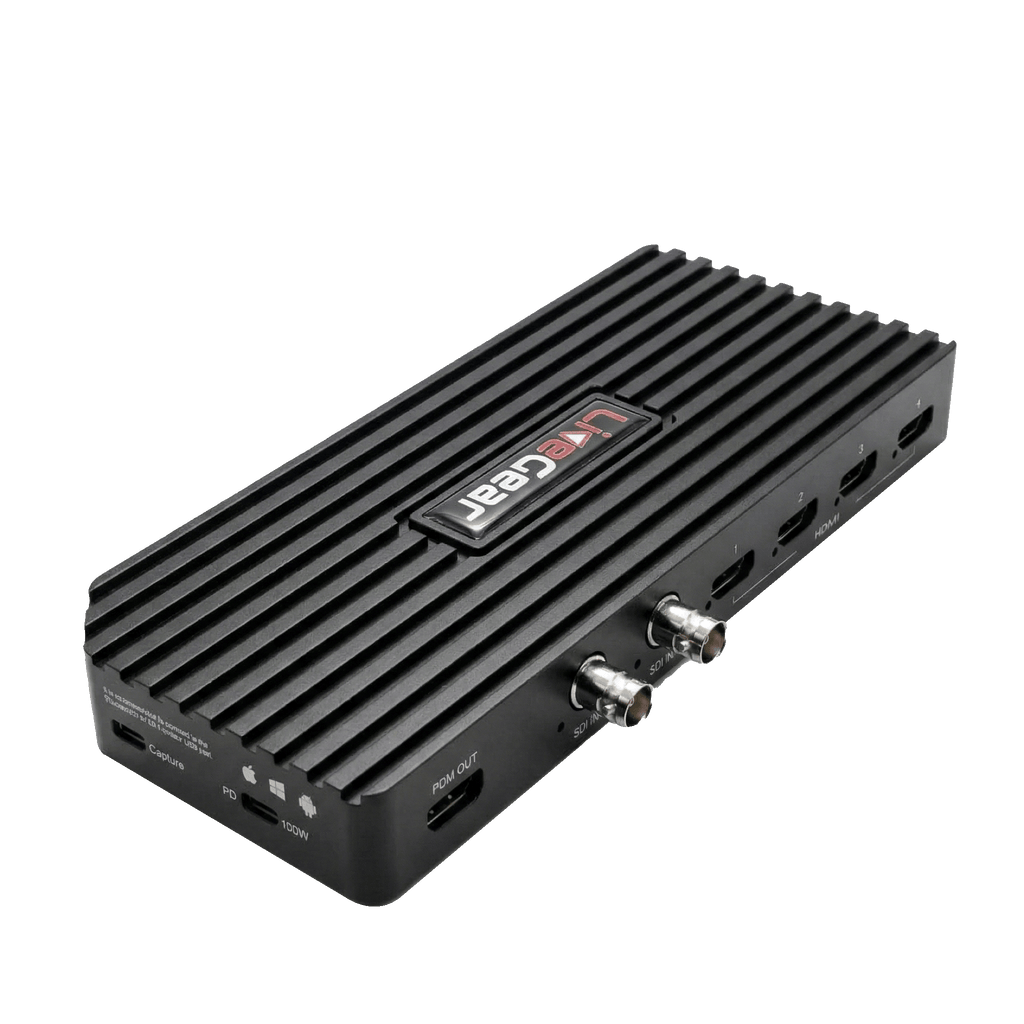

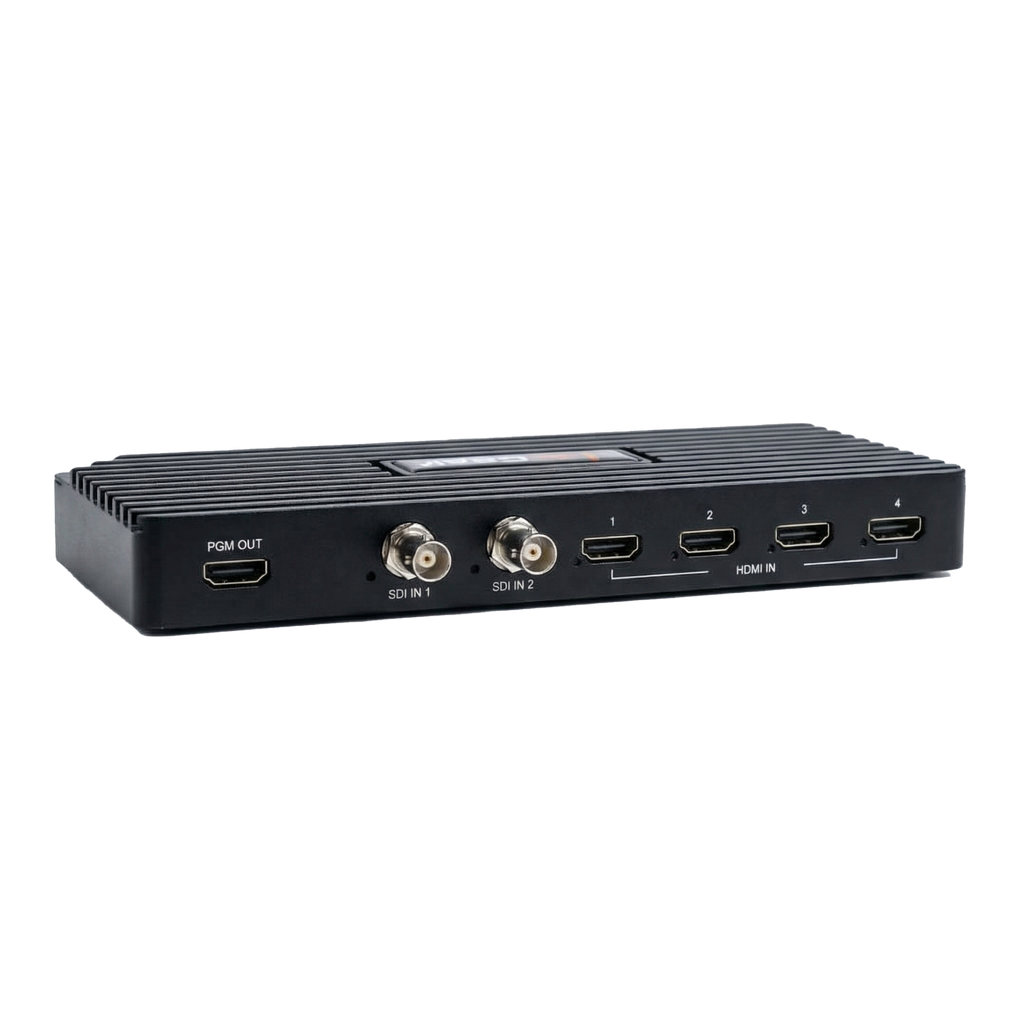

      • Video Inputs: 4x HDMI inputs, 2x 3G-SDI inputs (SDI 1 and SDI 2 share priority pairing with HDMI 1 and HDMI 2)



      • Video Outputs: 4x Loop outputs, 1x PGM Out (projection output acting as a secondary display output for switcher software)



      • Audio Interfaces: Mic / Line analog audio input (supports Line In or Microphone, adjustable via system recording volume); Headphone output (independent sound card output)

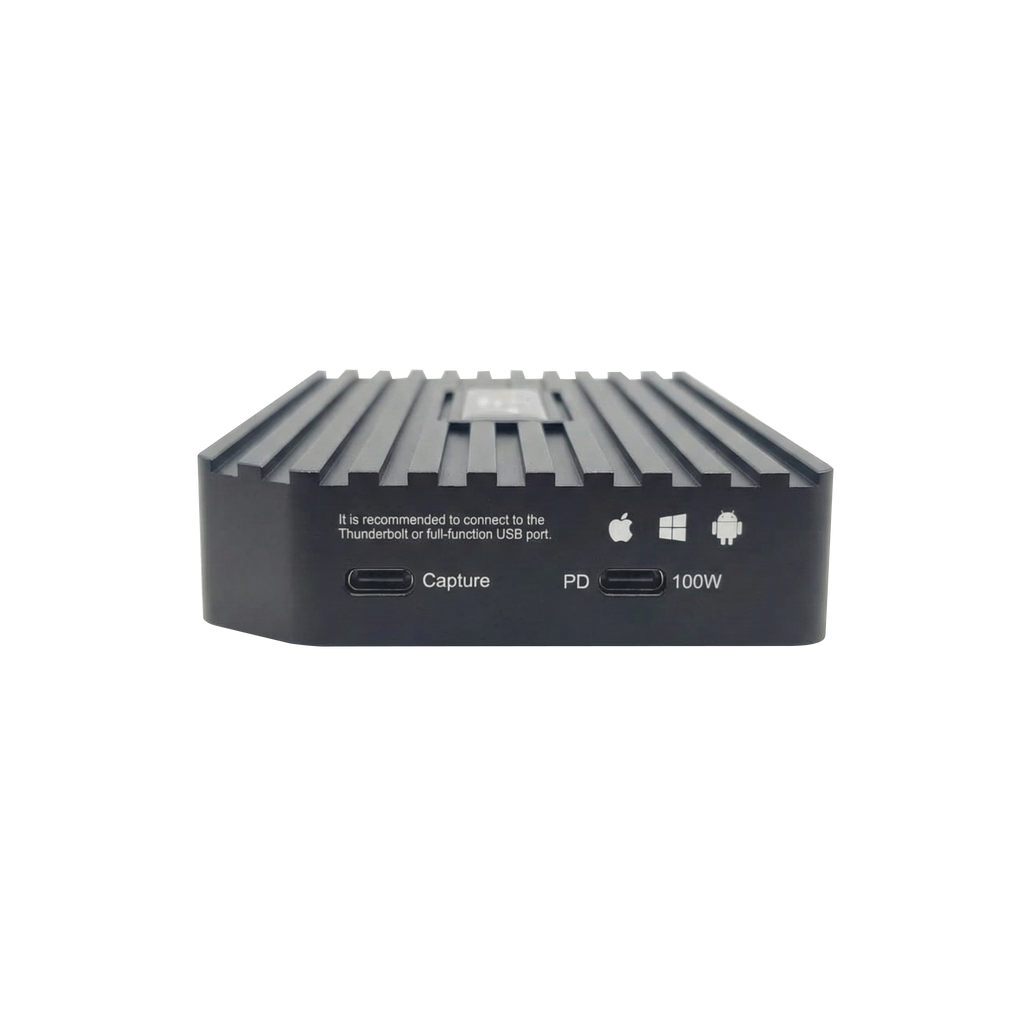

      • Capture Interface: Type-C USB port requiring a 10G+ USB interface or Thunderbolt 3+ port



      • Power Interface: PD 100W port supporting automatic voltage/power negotiation



      • Supported Port Resolutions:



        • SDI IN: SMPTE424M, max 1080p60



        • HDMI IN: HDMI 1.4 max YUV422 @ 4K30, YUV420 @ 4K60



        • HDMI PGM OUT: 4K60 (requires USB4/Thunderbolt)



        • Analog Audio: 48K Stereo



      • Operating Systems: Compatible with macOS, Windows, and Linux



      • Power Consumption: <8W
