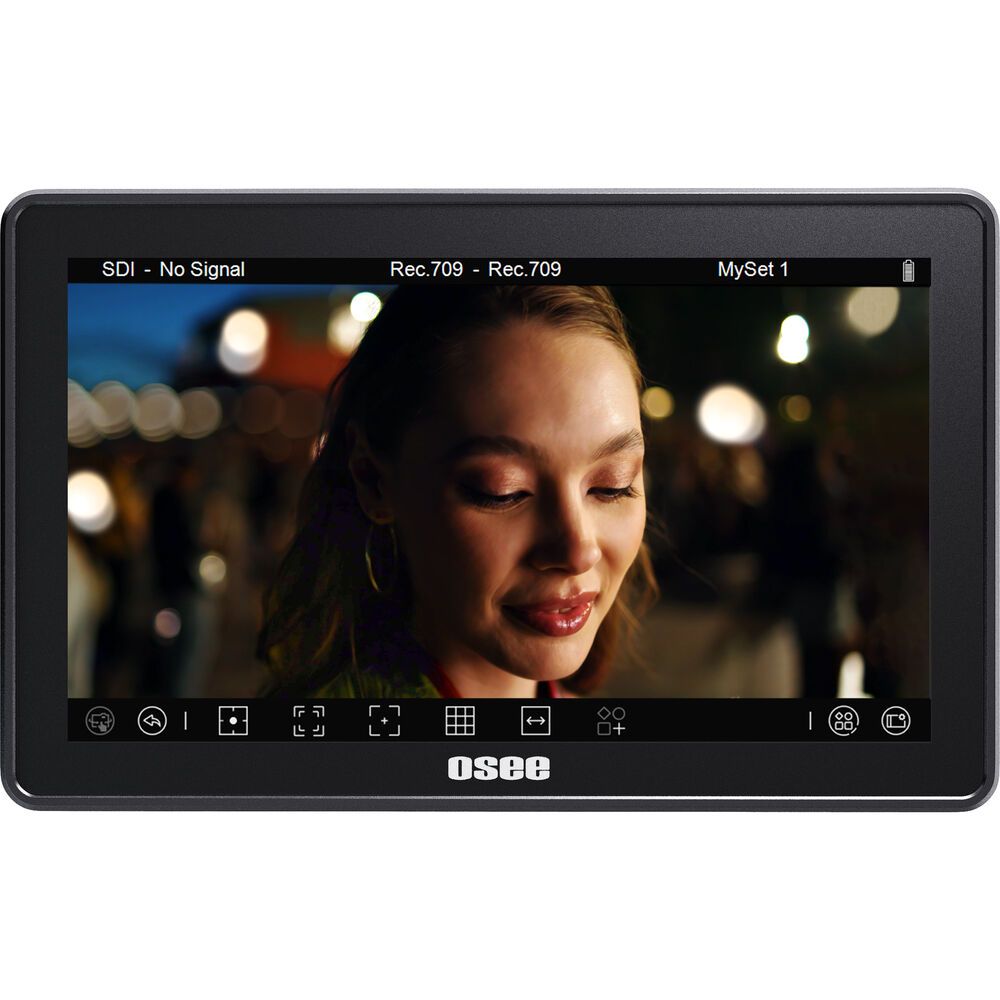

OSEE G7 Pro 7" Touchscreen HDMI/SDI Field Monitor with Camera Control

filler

Price:
Sale priceGH₵6,489
Stock:
In stock
Product Highlights
  • 1920 x 1080 Touchscreen Display
  • Input up to 4K via HDMI & 2K via 3G-SDI

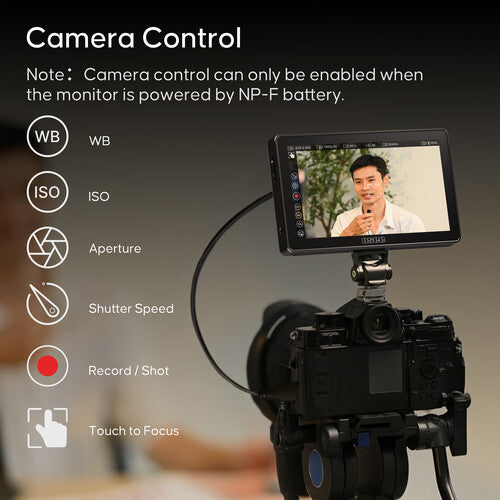

  • USB-C Port for Camera Control
  • Input 3D LUTs via SD Card Slot
  • 3000 cd/m² Brightness, 1300:1 Contrast

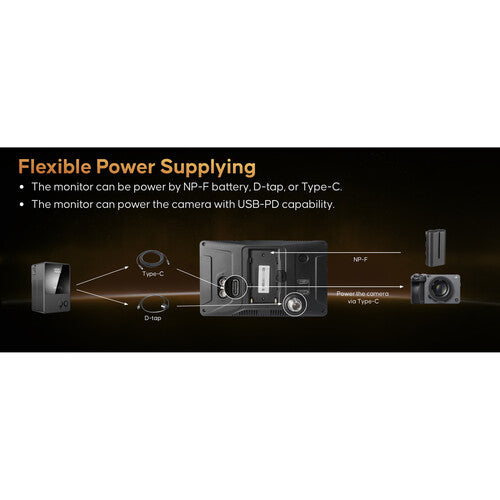

  • Power via USB-C PD, L-Series, DC Input
    Specs

    OSEE G7 Pro Specs

    Key Specs
    Display Size
    6.97" / 17.7 cm
    Native Resolution
    1920 x 1080
    Touchscreen
    Yes
    HDR Support
    Yes
    Media/Memory Card Slot
    Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]
    Wireless
    No
    Video Format
    HDMI
    DCI 4K: 30/29.97/25/24/23.98
    UHD 4K: 30/29.97/25/24/23.98
    DCI 2K: 50/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    SDI
    DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
    DCI 2K PsF: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    Battery
    1x L-Series Mount on Fixed Plate
    Power Consumption
    16 W (Maximum)
    Display
    Panel Type
    LCD
    Display Size
    6.97" / 17.7 cm
    Native Resolution
    1920 x 1080
    Aspect Ratio
    16:9
    Viewing Angle
    178°
    Touchscreen
    Yes
    Maximum Brightness
    3000 nits / cd/m2
    Contrast Ratio
    1300:1
    Color Support
    1.07 Billion Colors (10-Bit)
    HDR Support
    Yes
    Color Gamut
    100% Rec. 709
    LUT Support
    Yes
    Image Controls
    Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Vectorscope, Waveform, Zebra

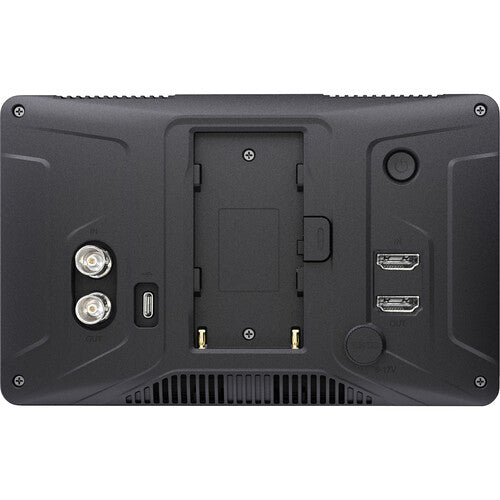

    Inputs/Outputs

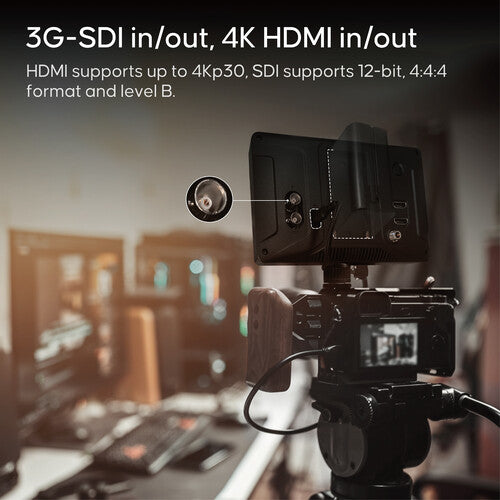

    Video I/O
    1x BNC (3G-SDI) Input
    1x BNC (3G-SDI) Output
    1x HDMI 1.4 Input
    1x HDMI 1.4 Output
    Embedded Audio
    HDMI/SDI
    Audio I/O
    1x 1/8" / 3.5 mm Headphone Output
    Built-In Speaker
    No
    Power I/O
    1x Barrel Input
    1x USB-C Input/Output
    Other I/O
    1x USB-C (Camera Control) Output [Shared with Power I/O]
    Media/Memory Card Slot
    Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]
    Wireless
    Wireless
    No
    Wi-Fi
    No
    Bluetooth
    No
    Mobile App Compatible
    No
    Format Support
    Video Format
    HDMI
    DCI 4K: 30/29.97/25/24/23.98
    UHD 4K: 30/29.97/25/24/23.98
    DCI 2K: 50/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50

    SDI
    DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
    DCI 2K PsF: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    Power
    Input Power
    7 to 16 VDC
    Battery
    1x L-Series Mount on Fixed Plate
    Power Consumption
    16 W (Maximum)
    Mounting
    Tripod/Accessory Mounting
    Top
    1x 1/4"-20 Female

    Bottom
    1x 1/4"-20 Female
    General
    Environmental Resistance
    No
    Material of Construction
    Aluminum, Glass
    Dimensions
    7 x 4.4 x 1.1" / 178 x 111.6 x 28.9 mm
    Weight
    0.9 lb / 409.00 g
    Packaging Info
    Package Weight
    1.775 lb
    Box Dimensions (LxWxH)
    9.3 x 8 x 1.5"
